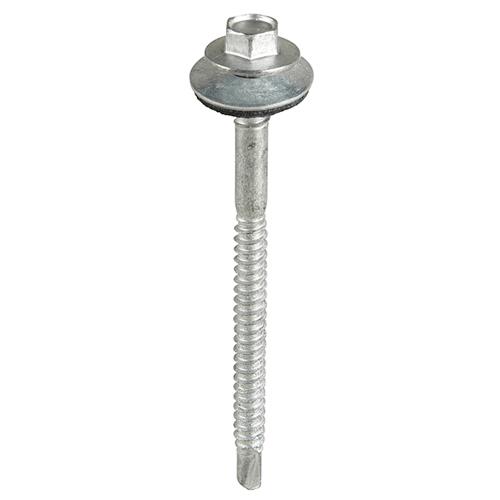

Timco Composite Panel Screws For Light Section Steel

Description

Specifically designed to attach composite panel to light section steel (Max. 5mm). Self-drilling point with hexagon head and split thread.

Features

Exterior plating gives a reliable and durable corrosion resistant coating which resists 500 hours salt spray

Specification

Socket Size (mm) - 8
Min. - Max. PT (mm) - 32-63 - 65-95
Finish - Exterior (Silver Organic)
Head Type - Hex
Effective Thread L (mm) - 41
Substrates - Composite Panel
Point Type - Self-Drilling No.3
Material - Case & Core Hardened Carbon Steel
Pack Type - Box
FW Ø (mm) - 12
Size (mm) - 5.5/6.3 x 82 - 5.5/6.3 x 115
MDT (mm) - 5
Packs per Carton - 12
Pack Qty - 100
Approval - BS EN 10666 (DIN 7504)
Corrosion Rating (1-5) - 3 - Urban & industrial areas with a low salt atmosphere
EPDM Washer (mm) - 16
Thread Type - Dual 60° Self-Tapping
Drill Tip A (degree) - 110
Max. Torque (Nm) - 12
Drill Tip W (mm) - 4.5
Head H (mm) - 5.7 Drill Tip
L (mm) 8
