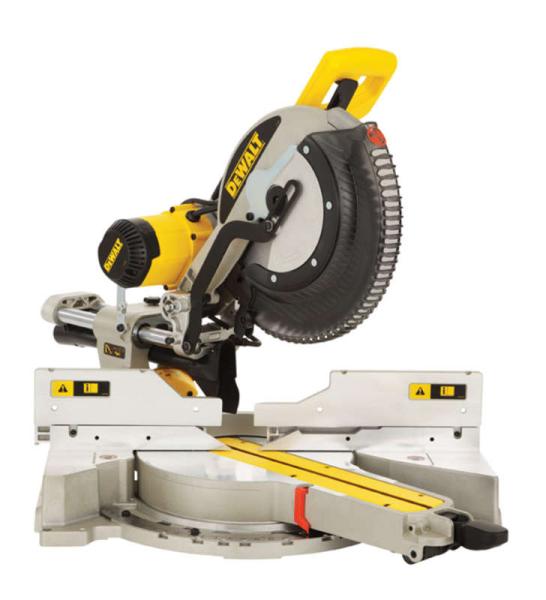

DeWALT DWS780 305mm Compound Sliding Mitre Saw

DeWALT DWS780 305mm Compound Sliding Mitre Saw

Voltage
Please select from the options above.
Quantity
-
+

Dewalt DWS780 Compound Mitre Saw  Dewalt DWS780 Compound Mitre Saw


Features


Outstanding cutting performance in both small profiles and large construction timbers upto 110 x 303 mm

XPS Shadow line cut indicator provides fast accurate alignment of the blade while illuminating the work piece for increased productivity no adjustment required

Heavy duty durability with the ability to fully adjust your machine to mainatin accuracy over the life fo the tool.

New quick release bevel stop setting provides accurate and simple setting of bevel angles up to 49° left and right

Easy to use mitre and bevel controls making the tool fast and simple to change from one set up to another

Cam action mitre lock function makes mitre setting faster and easier allowing the user to quickly adjust angles between 0° - 50° left and 0° - 60° right

Long life Accuracy in Table and Fence Design

The large dual sliding fence gives maximum support in large material cuts at any angle or combination of angles

Linear horizontal rails utilise bronze guides to provide maximum precision when cutting materials up to 345 mm wide

Compact and lightweight design characteristics deliver a saw with enormous capacity which is easy to transport around the jobsite

Outstanding dust control and deflection away from cutting area

Electronic speed control for adjusting cutting speed when cutting materials other than wood

The innovative grooving stop allows the adjustment of the cutting depth for grooving and rebating applications


Specification


Power Input 1675 Watts
Power Output 960 Watts
Blade Speed 1900 - 3800 rpm
Blade Diameter 305 mm
Blade Bore 30 mm
Bevel Capacity 49/49°
Mitre Capacity [right/left] 60/50°
Cutting Capacity at 90°/90° (W x H) 303 x110 mm
Cutting Capacity at 90°/90° (W x H) 345 x 76 mm
Cutting Capacity at 45°/90° (W x H) 268 x 63 mm
Cutting Capacity at 45°/90° (W x H) 345 x 44 mm
Cutting Capacity at 90°/45° (W x H) 211 x 112 mm
Cutting Capacity at 90°/45° (W x H) 244 x 76 mm
Max. Cutting Capacity at 45°/45° 212 x 76 mm
Max. Depth of Cut [Saws] 170 mm
Weight 24.8 kg
Depth 470 mm
Length 770 mm
Height 396 mm


Standard Equipment


High Quality 60 tooth blade
Blade spanner
Dustbag
Material Clamp


Warranty


1 year warranty extended to 3 years with a MyDeWalt registration (within 4 weeks of purchase)
