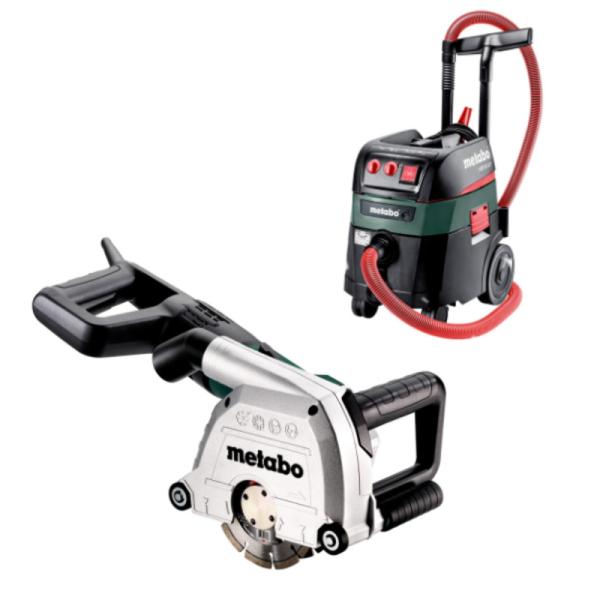

Metabo MFE 40 Wall Chaser & ASR 35 M ACP Dust Extractor Kit

Metabo MFE 40 Wall Chaser & ASR 35 M ACP Dust Extractor Kit

Voltage
Please select from the options above.
Quantity
-
+


Metabo Wallchaser

Features ASR 35 M ACP


For extraction from the power tool in continuous mode, both on construction sites and in the workshop
Especially suited for extracting concrete and rock dust
Compact vacuum cleaner for liquids and dry solids with commercial registration
Power socket for a power tool for using the automaticalstart-up/shut-down of the vacuum cleaner
AutoCleanPlus: saves both costs and time thanks to automatic MPulse filter cleaning during continuous use
If the optimum suction performance falls below a certain level, the filters are vibrated immediately
High user protection: certified in accordance with EU standard for M class dusts
Automatic shut-down when vacuuming liquids once the maximum fill level is reached
Warning signal on shortfall of the minimum volume flow to protect the user
Optimum suction power by preselection of the hose diameter
Automatic trailing mechanism for emptying the suction hose completely
Antistatic basic equipment prevents static charge when using appropriate accessories
Sturdy thanks to especially large wheels and castors with wheel stop
Cable winding mechanism
Practical accessory case and storage area


Features MFE 40


Ideal for electric installations to lay cables and empty pipes under plaster with cutting depths up to 40 mm
Maximum work progress by means of powerful motor, constant speed and two-speed high-performance gear
Robust aluminium die-cast hood with rubber rolls and optimal handle position for comfortable guiding of the machine
Pushing cut for optimal view of the marking line
Channel width and cutting depth can be set Metabo Marathon motor with patented dust protection for long service life
Tacho-Constamatic (TC)-Full Wave Electronics: fast work progress by means of constant speed under load
Electronic soft start and restart protection for safe working
LED signal informs about overload or active restart protection
Clean, low-dust working by means of connecting a Metabo all-purpose vacuum cleaner (certified with ASR 35 M ACP)
Suitable for slitting grooves up to a width of 30 mm without centre in one workstep (with special accessories)
Also suitable for cutting with only one diamond cutting disc
Metabo S-automatic safety clutch: mechanical decoupling of the drive for safe working should the disc stop unexpectedly


Specification ASR 35 M ACP


Voltage - 110V/240V
Air output max. - 4380 l/min
Vacuum - 270 hPa (mbar)
Filter surface - 8600 cm²
Input power max. - 1400 W
Container volume - 35 l
Suction hose Ø - 35 mm
Hose length - 4 m
Weight - 16 kg
Cable length - 8 m

Noise emission
Sound pressure level - 69 dB(A)


Specification MFE 40


Adjustable cutting depth 10 - 40 mm
Possible groove widths 9 / 15.5 / 22 / 28.5 / 35 mm
Cutting disc 125 mm
Rated input power 1700 W - 1900 W
Output power 1120 W
No-load speed 5000 rpm
Revolutions at rated load 4200 rpm
Torque 6 Nm
Weight (without power cable) 4.6 kg
Cable length 4 m
Noise emission :
Sound pressure level93 dB(A)
Sound power level (LwA)104 dB(A)
Uncertainty of measurement K3 dB(A)


Standard Equipment ASR 35 M ACP


1x Metabo ASR 35 M ACP 1400W M Class 35Ltr Wet & Dry Vacuum Cleaner
1x Antistatic suction hose (Ø 35 mm, 4 m long)
1x Handle adapter
2x Plastic suction pipes
2x Polyester filter cassettes (M class)
1x PE Filter bag
1x Grouting nozzle
1x Floor nozzle (300 mm wide)
Spacer Rings
2 Diamond cutting discs
Flange nut
Face pin wrench
Chase chisel
Plastic carry case


Warranty


Metabo 3 Year Warrantyclick above logo for more details or to register you purchase online
