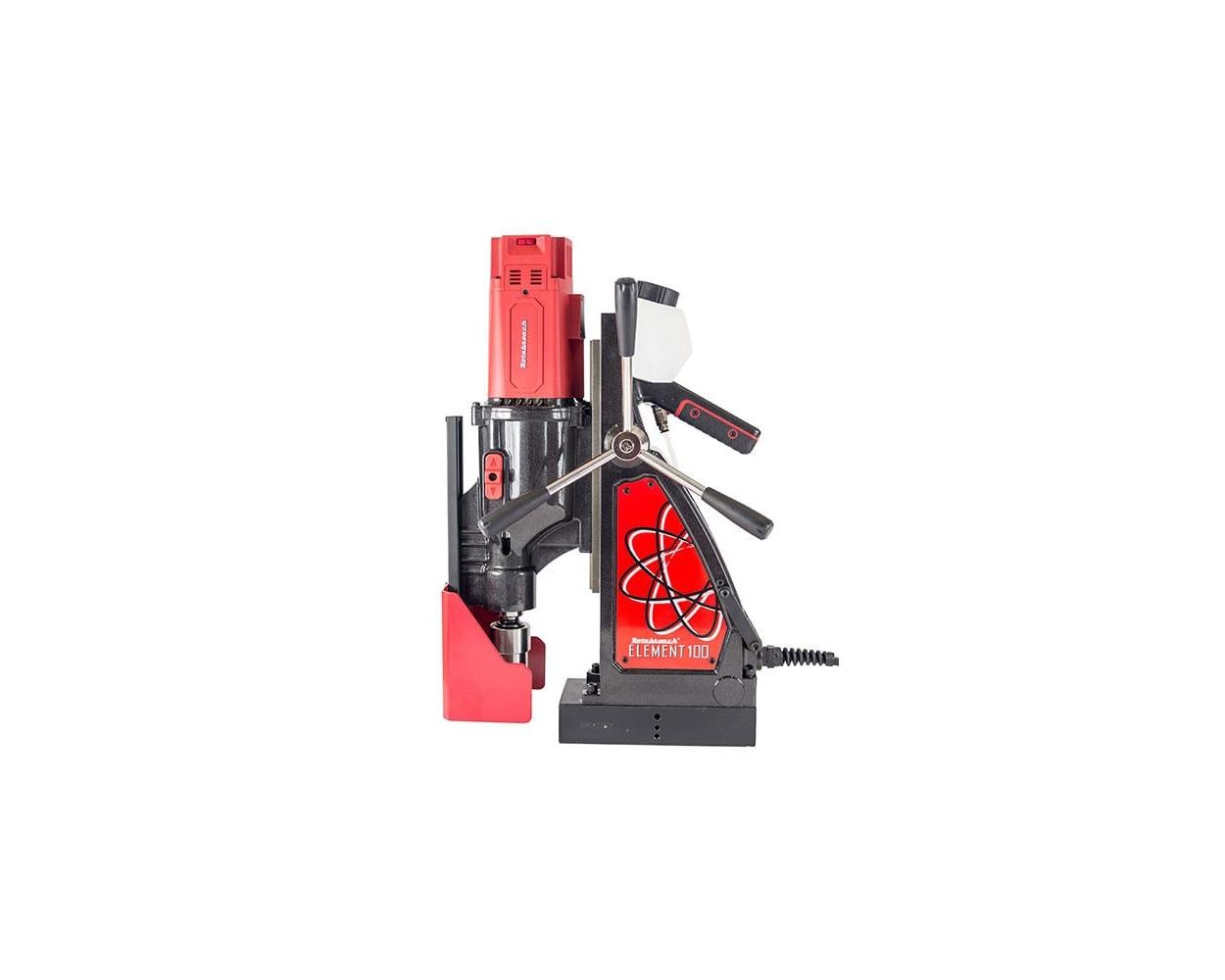

Rotabroach Element 100 110v Magnetic Drilling Machine

£1,139.99 £949.99

Stock Code

RTBELEMENT100/1

Skip to the beginning of the images gallery

Features

Rotabroach’s largest machine with large diameter drilling and cutting depths.
Suitable for drilling up to 100mm diameter by 100mm depth.
The ‘Element 100’ offers forward and reverse functionality for tapping.
The ‘Element 100’ can be supplied as a swivel base or a non-swivel base.
The Element range uses a unique dual motor protection system prolonging the machines life and preventing unwanted wear.

Specification

Motor Specification 2000W
No Load RPM Gear 1: 45-129 RPM Gear 2: 70-208 RPM Gear 3: 150-434 RPM Gear 4: 240-700 RPM
Max Hole Cutting Capacity 100mm x 100mm Deep – 31.75 with MT Drill
Overall Dimensions Height: 560mm / Width: 230mm with Capstan / Length: 460mm with Guard
Machine Weight 24.8kg
Magnetic Adhesion 20,000N
Magnet Size 228mm x 114mm
Safety Features Cutsmart™ Technology / Fixed Guard / Magnetic Detection

Warranty

12 Months

*Unfortunately, due to weight restrictions we are currently unable to send this item to Northern Ireland, Scottish Highlands, Channel Islands & Isle of Man*
