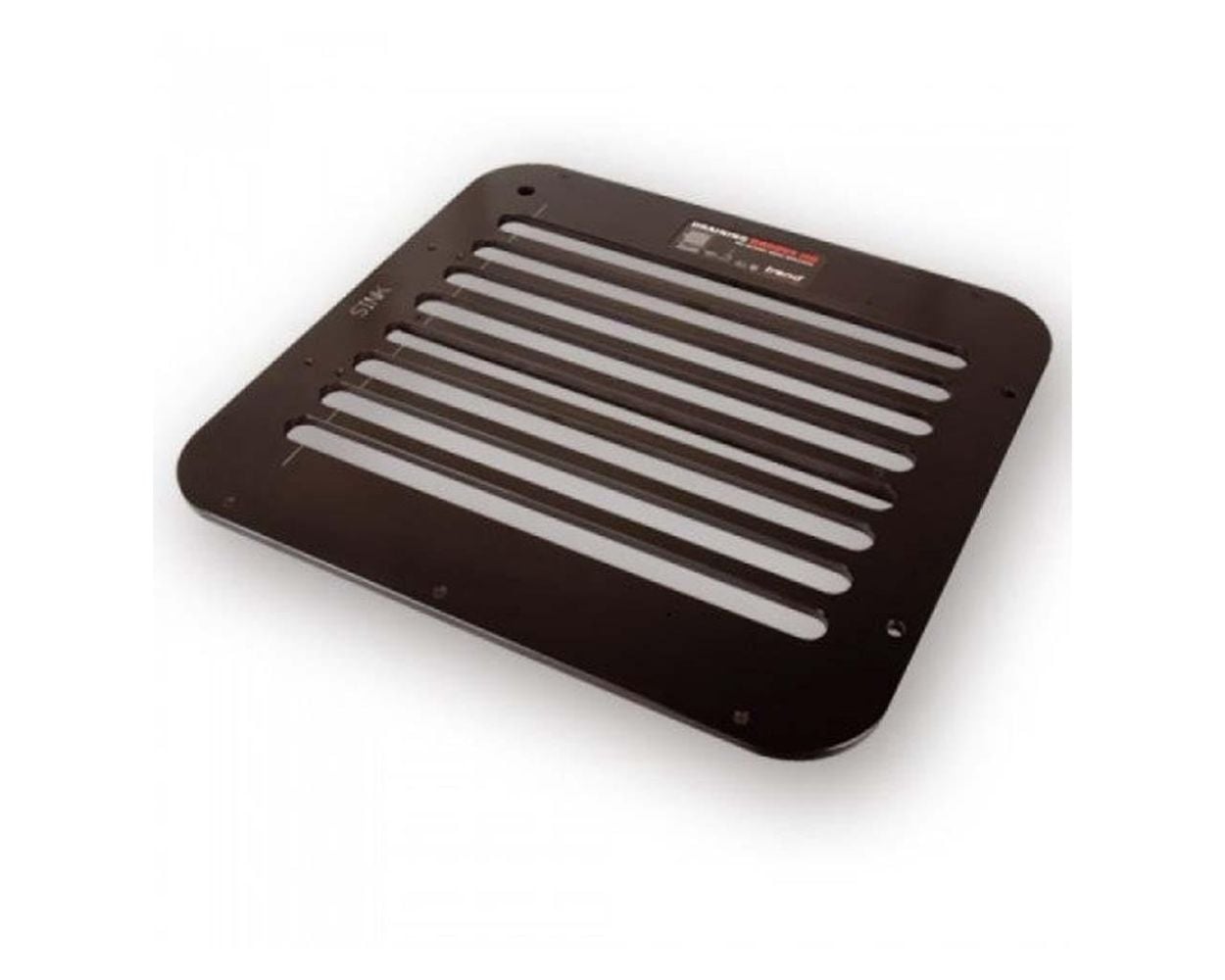

Trend DG/JIG Draining Groove Jig

The Trend Draining Groove Jig is designed for routing and draining groves in solid timber for Belfast type sinks. It is made from 12mm hardwearing CNC machined phenolic and provides a 0.5 degree fall. What's more, this product has three removable sloping runners for support.

Features

Grooves at 50mm pitch and 455mm long
Slight marks for lining up
Cutter diameter check hole
Fixing holes for user made stops for repition work

Specification

Fall: 0.5 degree
Groove pitch: 50mm
Groove length: 455mm
Slat width: 19.8mm
Length: 625mm
Height: 585mm
Width: 12mm
Weight: 4.3kg

Standard Equipment

1x Trend DG/JIG Draining Groove Jig)
