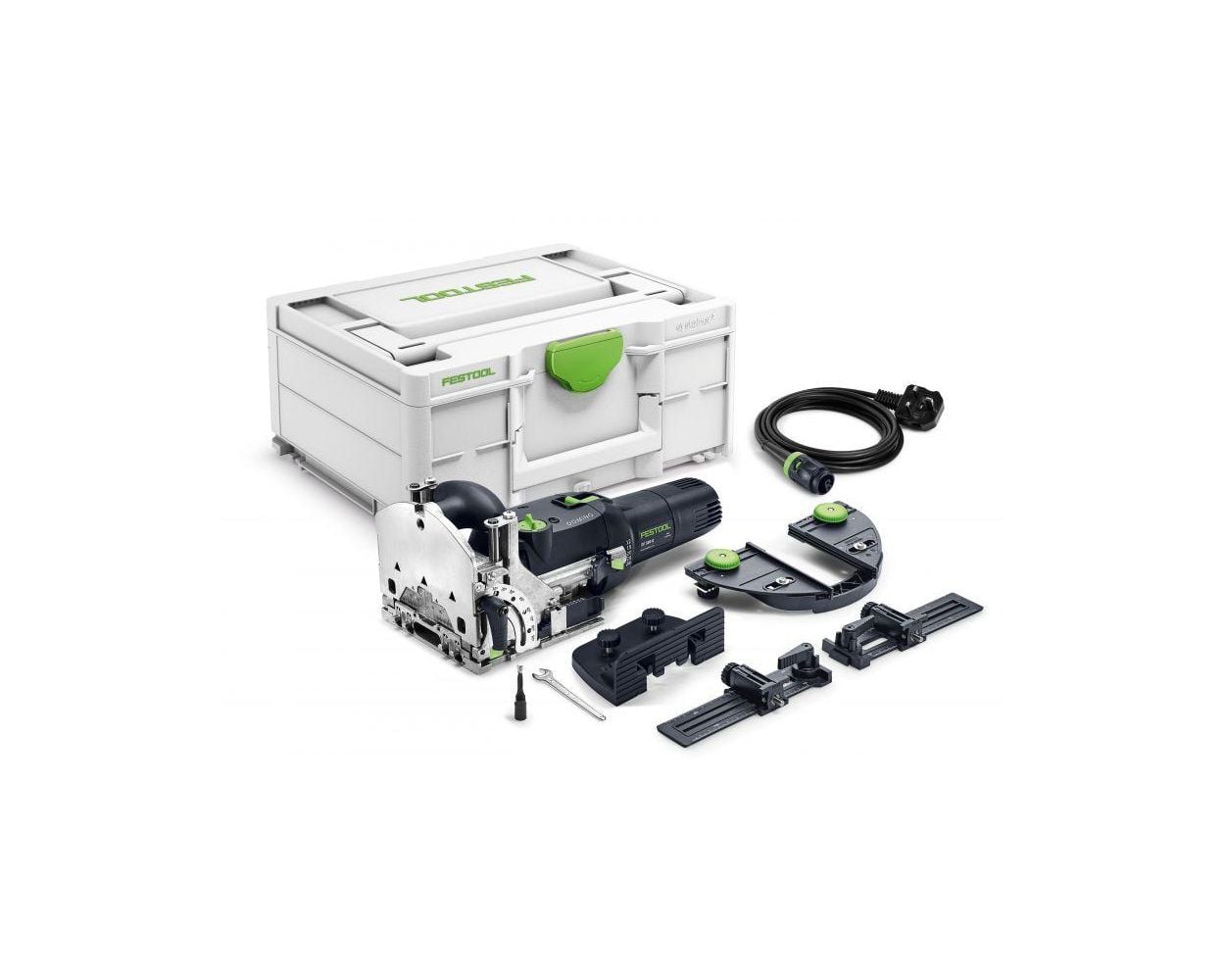

Festool 578543 DF 500 RQ-Set Domino Jointing Set 240V

The DOMINO jointing system, made up of the joining machine and DOMINO dowels, brings them all together. The unique pendulum routing action of the DOMINO carves out precise, twist-proof elongated holes. The DOMINO dowel combines the strength of slot and mortise joints with the flexibility of flat dowels. Perfect for both delicate and hefty workpieces, whether inside or out.

Features

• Precise: One-of-a-kind pendulum milling principle for accurate, effortless work.
• Quick and easy: Built-in stop pins for repeating dowel placement.
• Stable: Super stable and twist-proof joints thanks to the unique shape of the DOMINO dowel.
• Versatile: DOMINO plugs come in various sizes from 4 x 20 mm to 10 x 50 mm and in two types of wood for indoor and outdoor use.
• Sorted: The routing depths are just right for the dowel lengths and panel materials.
• Flexible: The DOMINO core connectors and furniture fittings let you create sturdy furniture setups that can be taken apart again.
• System: Accessories are a perfect fit for the whole DOMINO system.

Specification

• Power consumption 420 W;
• Idle engine speed 25500 min?¹;
• Depth stop for routing depth 12, 15, 20, 25, 28 mm;
• Max. routing depth 28.00 mm;
• DOMINO slot cutter dia. 4, 5, 6, 8, 10 mm;
• Routing height adjustment 5 - 30 mm;
• Mitre routing 0 - 90 °;
• Dust extraction connection diameter 27 mm;
• Cable length 4.00 m;
• Drive type Mains;
• Product weight without accessories 3.60 kg;
• Transport weight incl. accessories 6.5 kg

Standard Equipment

• DOMINO cutter D5,
• Additional stop,
• trim stop,
• cross stop,
• open ended spanner,
• WAF 8,
• plug it-power cable (4 m),
• Systainer SYS3 M 187

Warranty

Click above logo to register your 3 year guarantee online
