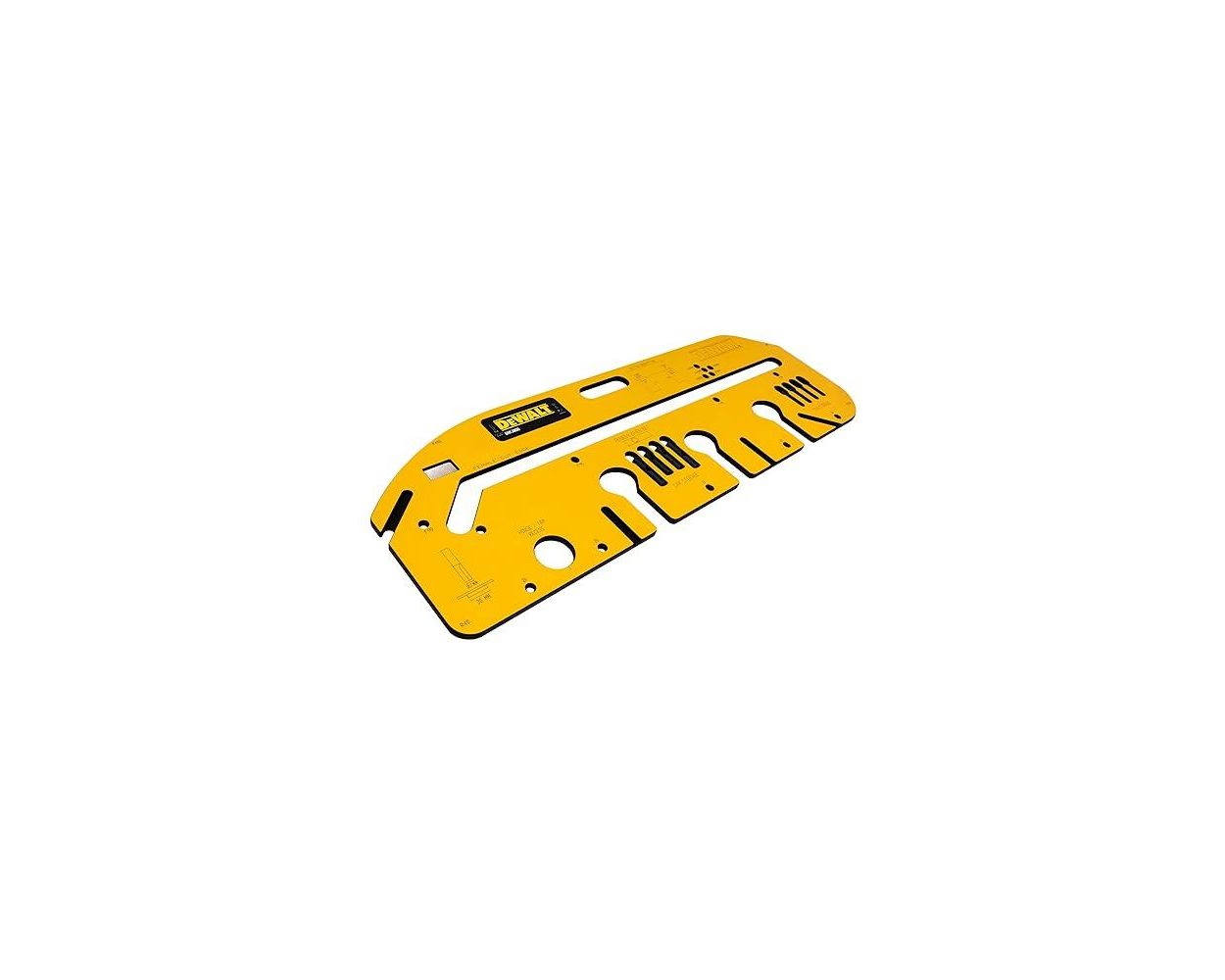

DeWalt DXWJ800E 800mm Worktop Jig

The DeWalt DXWJ800 professional kitchen worktop jig with Dual Measurement technology is made from High Grade Compact material and accommodates worktop joints ranging from 150mm to 800mm. Suitable for compact laminate, composite, solid wood, chipboard laminate, and more. The DeWalt Worktop jig offers versatility in handling different worktop materials, making it a reliable choice for professionals and DIY enthusiasts.

Features

• Engraved Fixed Peg Hole Measurements covering all Major Worktop Sizes: 600, 610, 616, 620, 635mm
• VisionLine clear window- front edge measurement technology covering all sizes from 150-800mm
• Built in Jig Peg & Cam Storage
• Clamp Guide recess slots
• R40, R100, R400 & 45° radius

Specification

• Product Weight: 4.9kg
• End Cut: 45°
• Corner Radius': 40mm/100mm/400mm
• Corner Mitre Joint: 45°
• Pins Included: Yes
• Routing Jig Type: Worktop Jig
• Router Shank: 1/2
• Jig Thickness: 12mm

Standard Equipment

1x DeWalt DXWJ800E 800mm Worktop Jig
