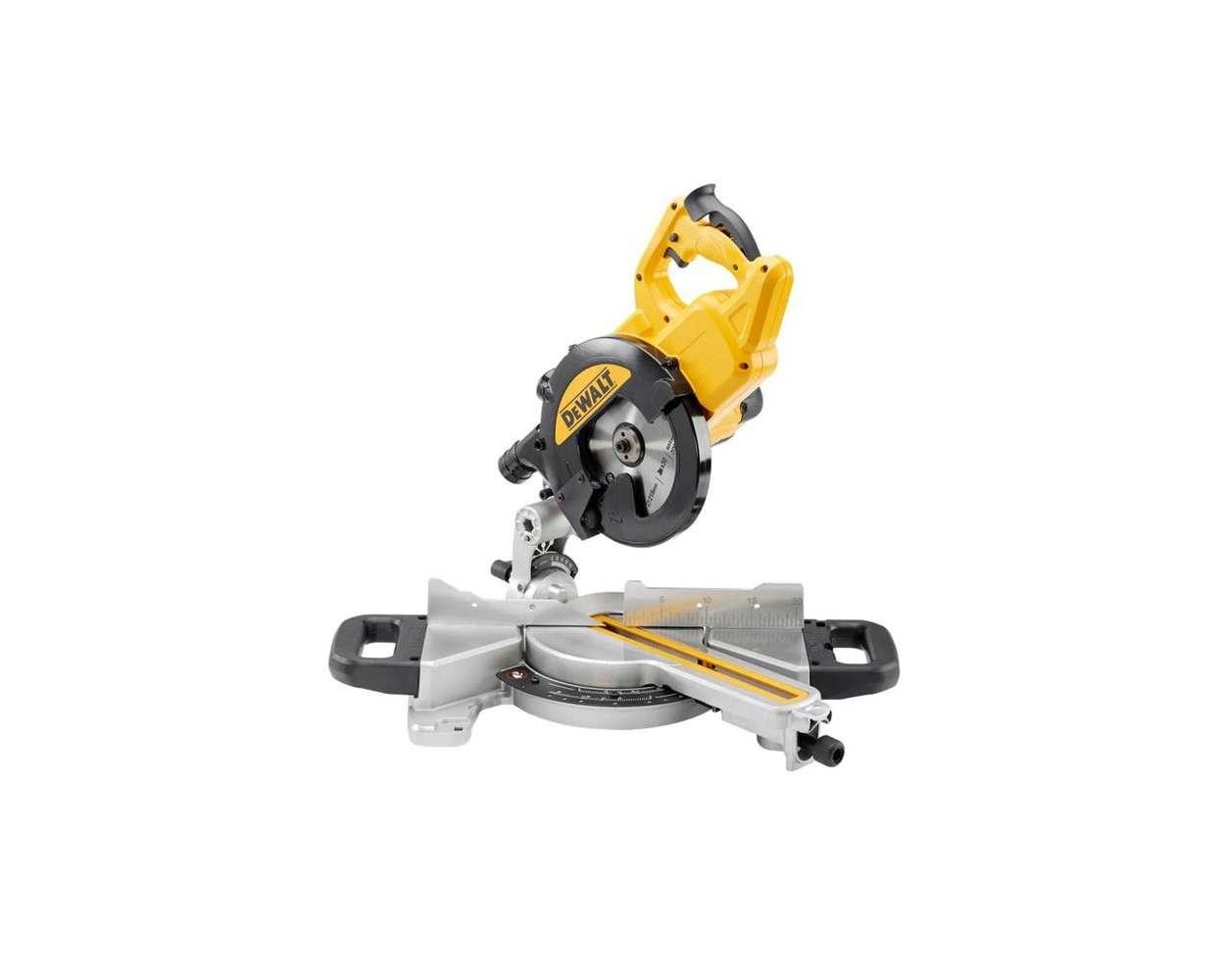

DeWALT DWS774 216mm Slide Mitre Saw with XPS 240v
Features
Uses current DEWALT mitre detents for repeatable cutting
XPS cutline system
New mitre angle adjustment system provides accurate and consistent setting of mitre angles.1400W motor / 6300blade rpm
Large cut capacity 62x250mm
Weighs 12.0kg
Specification
Power Input 1400 Watts
Power Output 1100 Watt
Blade Speed 4500 rpm
Blade Diameter 216 mm
Blade Bore 30 mm
Bevel Capacity 48 °
Mitre Capacity [right/left] 48/48 °
Cutting Capacity at 90°/45° (W x H) 173 x 62 mm
Cutting Capacity at 90°/90° (W x H) 250 x 62 mm
Cutting Capacity at 90°/90° (W x H) 250 x 60 mm
Cutting Capacity at 45°/90° (W x H) 177 x 62 mm
Cutting Capacity at 45°/90° (W x H) 177 x 60 mm
Cutting Capacity at 90°/45° (W x H) 265 x 48 mm
Max. Cutting Capacity at 45°/45° 190x48 mm
Max. Depth of Cut [Saws] 70 mm
Weight 12.0 kg
Depth 550 mm
Length 490 mm
Height 590 mm
Standard Equipment
TCT tooth saw blade
Blade spanner
Material Clamp
Warranty
The DEWALT European PT Guarantee for your product may be extended from 1 year to 3 years from the date of purchase. The product should be registered by the original DEWALT Product user within 4 Weeks of Purchase at www.dewalt.co.uk/my-dewalt/register-tool. (DEWALT Product user contact details, tool catalogue number, serial number and date code required).
Kits comprising a range of tools are excluded from registration, individual tools from kits must be registered.
This warranty is backed by the manufacturer and is subject to their discretion following an inspection. It adheres to terms and conditions regarding normal wear and tear and proper use of the tool.
