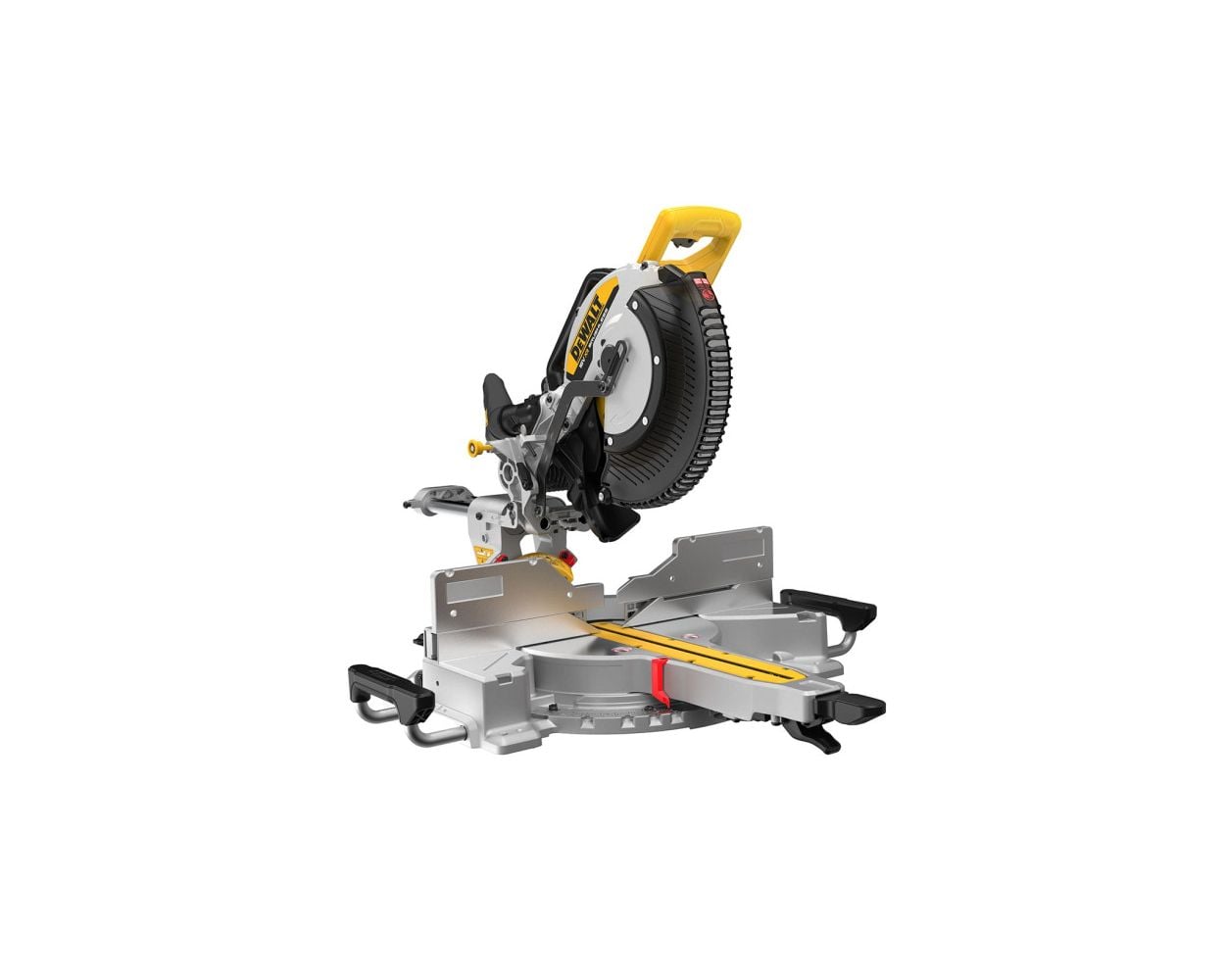

DeWALT DCS782N-XJ 18V XR Brushless 305mm Slide Mitre Saw Body Only

The DCS782 is the ultimate 18V cordless Mitre Saw for both first and second fix applications on the jobsite. It can deliver up to 371 cuts in 83mm skirting board with one DCB1880-XJ 18V 8Ah XR battery. The DCS782 will work with all 18V XR and 54V XR FLEXVOLT® batteries, so you can make the most of all your current batteries. We recommend for the best runtime and performance, using the DCB1880-XJ 18V 8Ah XR battery. The powerful 18V brushless motor offers a cutting capacity of 310 x 90mm, with a 165mm height capacity at the fence and the Regenerative Braking Technology extends runtime by redirecting lost energy back into the battery. Engineered for repeatable accuracy with dual horizontal rails and a stainless steel detent plate with common angles at 0, 15, 22.5, 31.6, 35.3 and 45 degrees. Other features include Wireless Tool Control to enable automatic stop start dust extraction when used with the DCV586M, XPS crosscut positioning system for the ultimate in accuracy and visibility with no calibration needed and 100mm side handles for material support and increased portability on site.

Features

• 18V XR BRUSHLESS MOTOR: Enhanced efficiency and durability
• IMPRESSIVE CROSS CUT CAPACITY: 90mm x 310mm at 90°
• HIGH DEPTH OF CUT: Up to 165mm x 19mm skirting board cut upright at the fence
• LARGE DUAL SLIDING FENCE: Provides maximum support in large material cuts at any angle or combination of angles
• COMPACT & LIGHTWEIGHT: Application focussed cut capacities, with a lightweight compact design for easy transport around the jobsite
• XPS SHADOWLINE: Provides fast accurate alignment of the blade with no adjustment required
• STAINLESS STEEL DETENT PLATE: Robust and easy to recalibrate, with common angles at 0, 15, 22.5, 31.6, 35.3 and 45 degrees
• AIRLOCK DUST PORT: AirLock compatible dust extraction for simple connection
• WTC DUST EXTRACTION: Wireless Tool Control allows direct connection to a compatible vac with auto stop/start
• CAM LOCK MITRE CONTROL: Makes mitre setting faster and easier, allowing to quickly adjust angles between 0° - 50° left and 0° - 60° right
• DOUBLE BEVEL: Intuitive bevel lock with machined stops provides accurate and simple setting of bevel angles up to 49° left and right
• DEPTH STOP: Allows the adjustment of the cutting depth for grooving and rebating applications
• MACHINED BASE & FENCE: Designed, machined and checked to the highest standards of accuracy to deliver 0.1° accuracy
• 3 YEAR GUARANTEE: Tool and battery covered by extended warranty, subject to registration

Specification

Max. Cutting Capacity (45°/90°) [Metric] 219 x 90 mm
Product Height [Metric] 450 mm Product Weight [Metric] 23.2 Kg
Max. Cutting Capacity (90°/45°) [Metric] 310 x 54 mm
Voltage 18 V
Power Source Cordless
Battery Chemistry Lithium Ion
Blade Diameter [Metric] 305 mm
No Load Speed (RPM) 3800
Blade Bore [Metric] 30 mm Blade Speed 3800 rpm
Max. Depth of Cut [Metric] 165 x 19 mm
Max. Cutting Capacity (45°/45°) [Metric] 219 x 54 mm
Saw Blade Thickness [Metric] 2.16 mm
Packaging Carton Product Length [Metric] 775 mm

Standard Equipment

1x 18V XR 305mm Mitre saw
1x Stabilizer bar
1x 60 Tooth blade
2x Base extensions
1x Material clamp
