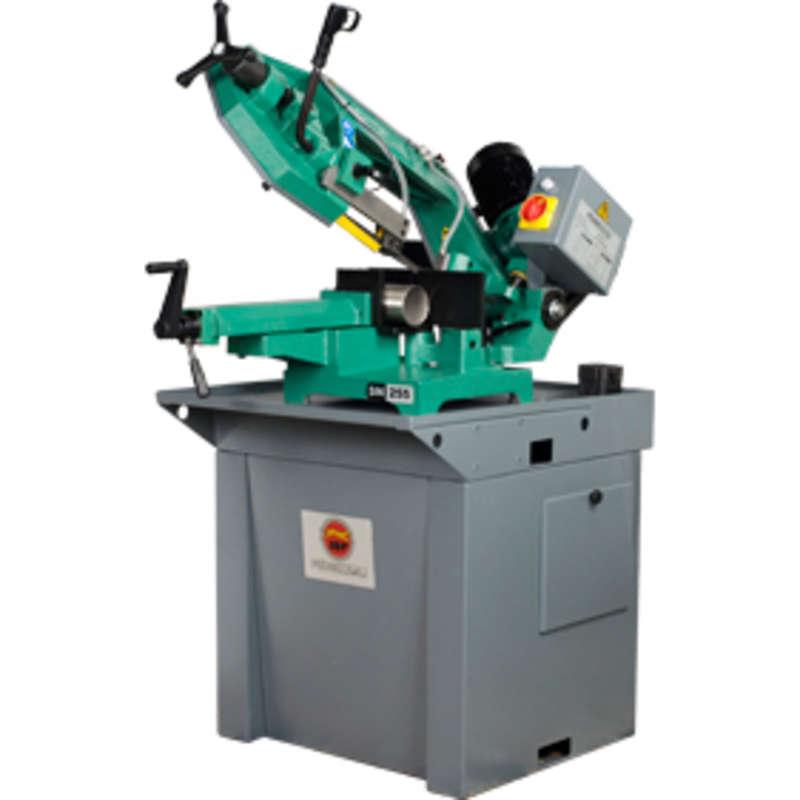

Pedrazzoli Brown SN255MRM Metal Cutting Bandsaw

Stock Code: PEDSN255MRM
£3011.00 (exc VAT) Each£3613.20 (inc VAT) Each

Online: Out of stock. Delivery normally 3-4 days
Cardiff: Out of Stock
Bridgend: Out of Stock
Quantity:
-
+

Contact us


Features


All main machine components are in cast iron: monolithic bow, bow support with hinge pin, centring ring, reducer box, vice base and vice carriage.Bow rotation for angled cuts from 0 to 60° left with pre-set stops at 45° & 60°,graduated ruler , mechanical stops and lever for intermediate position.Steel resting base with groove for band. Base turns together with bow so it can support parts even when making angled cuts.Deep angled opening on vice base to improve swarf discharge.2-speed three-phase motor (0.75-1.1 k
W) – transmission carried out by means of screw/ring reducer with 1:40 ratio for cutting speeds 29-58 m/min – (The SINGLE-PHASE version features only 1 speed with 2.2 Kw).Bow angle, blade length andfly-wheel diameter have been calculated to limit band yield and increase its life span.Spring-driven Mechanical blade-tightening device to ensure stretching is uniform and constant.19mm band supported by two bladeguides with hard metalplaques, adjustable according to dimensions of part to be cut.Electropump for cooling of band with lubrication oil.Adjustable mechanical vice unit with handwheel for gradual approach and lever for rapid clamping.Accident preventing safetydevices: flywheel guards which stop motor when opened, blade protection guards, blade start with “man-present” protection against accidental start-up, low voltage controls, key operated main switch.Possibility of calibrating the mechanical stops at 0°, 45° and 60° left, the balancing springs, the hinge pin and the bow’s perpendicular position to ensure cutting precision remains constant in time.


Specification


Speed m/min 29/58Motor Kw 0.75/1.1Vice 230 mm
Blade 2500×19x0.9mm
Weight 275kg
Sound Level 79db
CUTTING SPECS Round 220mm
Square 220mm
Rectangular Section 230x220mm


Warranty


12 months
