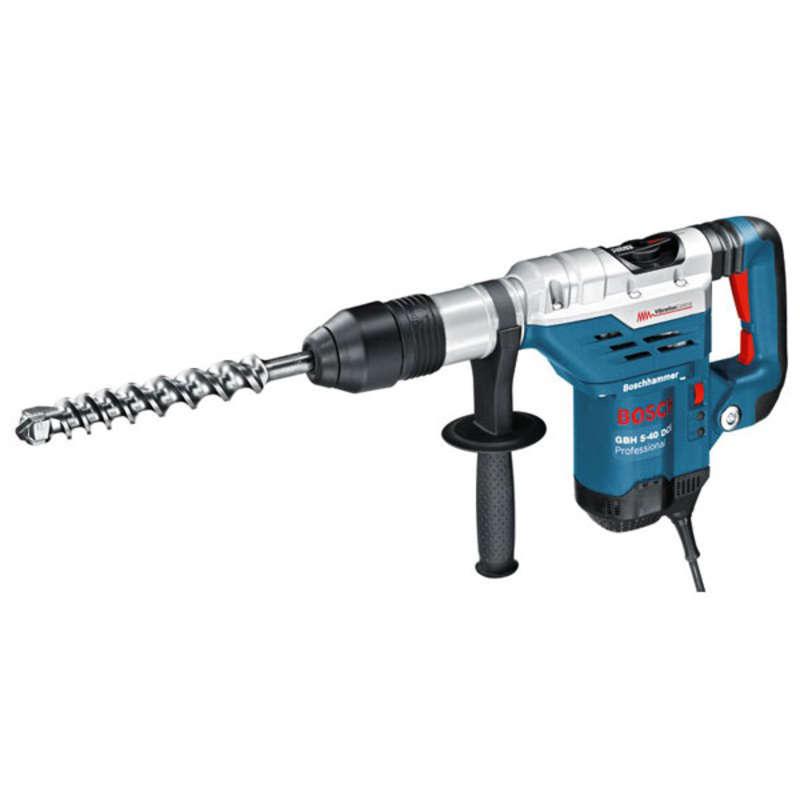

Features

the fastest all-rounder with Vibration Control
Fastest drilling rate in its class due to 1150w motor and powerful hammer mechanism
SDS-max comfort for easy and fast tool changes with one hand
Vibration control ensures more comfortable working evin in times-intensive applications
Patented setting wheel for variable adjustment of the speed and impact rate for optimum performance
Patented, lockable switch for low-fatigue chiselling work
Constant Electronic, service display and standby display for maximum convenience
Ball grommet for high movement radius and for preventing cable breaks

Specification

Rated power input 1.150 W
Impact energy 2 - 11 J
Impact rate at rated speed 1.500 - 3.050 bpm
Rated speed 170 - 340 rpm
Weight without cable 6,8 kg
Length 485 mm
Height 260 mm
Toolholder SDS-max
Drilling range
Drilling diameter in concrete with hammer drill bits 12 - 40 mm
Drilling diameter in concrete with breakthrough drill bits 45 - 55 mm
Drilling diameter in concrete with core cutters 40 - 90 mm
Functions
Constant Electronic
Electronic
Overload clutch

Standard Equipment

Carrying case
Auxiliary handle (2 602 025 117)
Machine cloth
Grease tube (ET no. 1 615 430 010)

Warranty

click above logo for details and to register your warranty
please note to qualify for the 3 year warranty you must register your tool within 4 weeks of purchase date
