Features

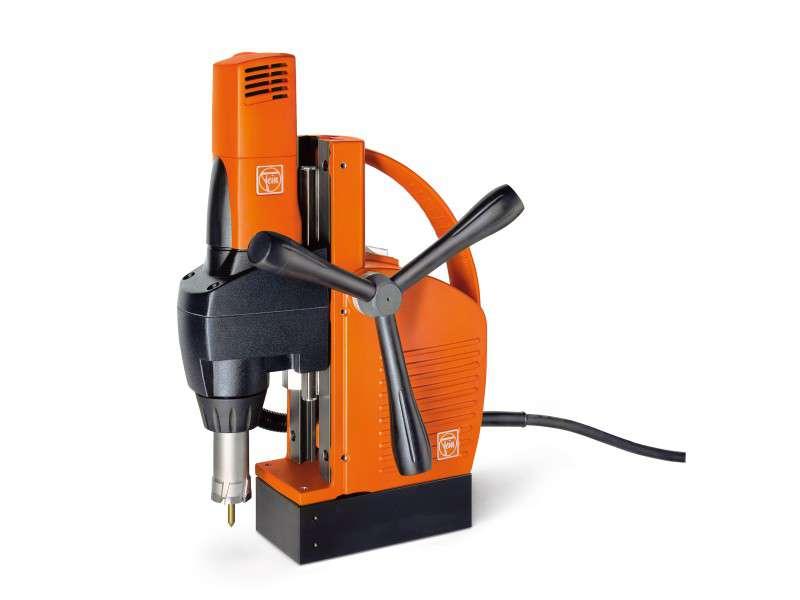

Small, extremely lightweight core drilling unit with superb ease of use for vertical and overhead use.
QuickIN rapid change system for fast, keyless tool changes.
Continuously adjustable double dove-tail guide enables use of long drilling tools without removing the machine from the workpiece.
High-torque FEIN high-power motor.

Specification

Core drill bit max. diameter 32 mm
Core drill, drilling depth max. 50 mm
Twist drill max. Ø 13 mm
Tapping M 12
Input 700 W
Output 450 W
Speed, no load 550 rpm
Speed, full load 440 rpm
Core drill holder QuickIN
Stroke 135 mm
Total stroke range 260 mm
Magnetic holding power 9 000 N
Magnetic foot dimensions 160 x 80 mm
Cable with plug 4 m
Weight according to EPTA 10,5 kg

Standard Equipment

1 case
1 cooling lubricant pump
1 lashing strap
1 swarf hook
1 3-jaw chuck up to Ø 13 mm
1 QuickIN adaptor for M18 x 6 P 1.5
2 centering pins
1 contact guard

Warranty

click above logo to register your new FEIN product within 6 weeks after purchase
for the 3-year FEIN PLUS warranty.
