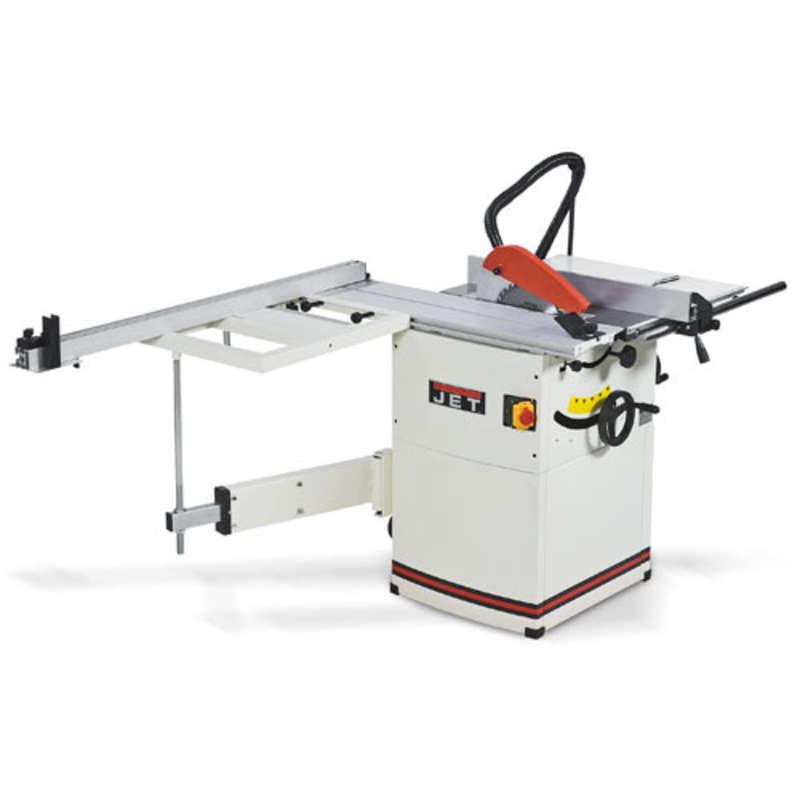

A compact 10" sliding table panel saw for the smaller workshop, robustly built and well featured. With a 1,000 x 255mm sliding table complete with outrigger table this will handle most sizes of board material. With a powerful motor and an 80mm max depth of cut using the standard 250mm 40T blade this machine is able to handle most jobs a small workshop or keen home user will demand. Easily made mobile with an optional wheeled base.

Features

Due to its compact size an ideal machine for the smaller workshop
Precision ground, abrasion proof cast iron table
Heavy cast iron saw mount for precision cuts, easy adjustment is via large cast iron handwheels
Rigid rip fence with round barmounting and integrated micro adjustmen
Sliding table made of extruded aluminium, precision machined and anodised for protection
Outrigger table 460 x 600mm with pull out mitre fence 2,200mm long
Lockable switch to prevent unauthorised operation
100mm dust port and dust collection on crown guard for optimum working conditions

Specification

Blade Dia/Bore 250mm/30mm
Blade Speed 4,000rpm
Blade Tilt 0° - 45°
Dust Extraction Outlet 100mm
Max Depth of Cut @ 45deg 59mm
Max Depth of Cut @ 90deg 80mm
Max Width of Cut with Fence 610mm
Nett Weight 130kg
Power Input 2.6kW
Table Height 860mm
Table Size

Warranty

12 months
This machine is on display in our Cardiff showroom. Should you wish to make further enquiries about purchasing or arrange for an in-store demonstration please feel free to contact us.

NOTE: This machine may be subject to pallet or tail lift delivery charges. Please contact us for a quotation.
