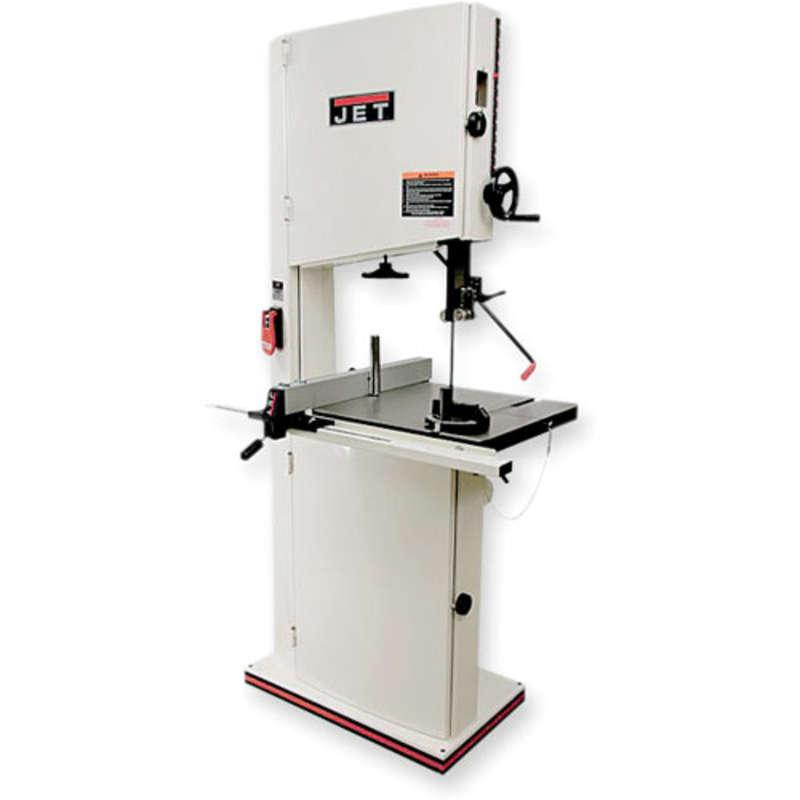

With precision T-style fence assembly and parallel cutting device for special cutting jobs the Jet JWBS-20Q can tackle most large cutting tasks. The extra large cast iron table tilts -10° to + 45° and is supported on each side by large trunnions. The balanced cast iron wheels are tyred with a curved, long-life PU coating. Performance is further improved by the upper and lower precision guides, which also extend blade life. The two blade speeds of 550 & 970 m/min are selectable via stepped pulleys. There is precise and simple adjustment of the cutting height of the upper blade guide using large-size hand wheel and rack system. Built-in as standard is a cutting height scale making it simple to read the exact depth of the cut. A conveniently mounted, dual function blade tension handlever has an easy-to-read blade scale. The mitre gauge tilts 60³ to each side of centre. This is a highly accurate, smooth cutting bandsaw, well suited to the industrial workshop. A 20 A supply is recommended with a 230v 1ph JWBS-20Q .

Features

Two selectable blade speeds
Cast iron blade wheels
Cast iron tilting table (-10°to +45°)
Locking rip fence
Parrallel cutting attachment
T-slotted mitre fence
Fully interlocked doors
Electro-mechanical motor brake
Quick release and tensioning blade system
Blade tracking control
Optional mobile base

Specification

Blade Length 3,820mm
Blade Speed 50 / 970m /min
Blade Width Min/Max 3mm(1/8")/32mm(1.1/4")
Dust Extraction Outlet 100mm (x2)
Max Depth of Cut 300mm
Max Width of Cut 508mm
Max Width of Cut with Fence 480mm
Nett Weight 230kg
Overall L x W x H 900 x 1100 x 1900mm
Power 4.2kw 415v 3ph
Table Height 930mm
Table Size 530 x 530mm
Table Tilt -10° to +45°
Wheel Diameter 520m

Warranty

12 months

This machine is on display in our Cardiff showroom. Should you wish to make further enquiries about purchasing or arrange for an in-store demonstration please feel free to contact us.

NOTE: This machine may be subject to pallet or tail lift delivery charges. Please contact us for a quotation.
