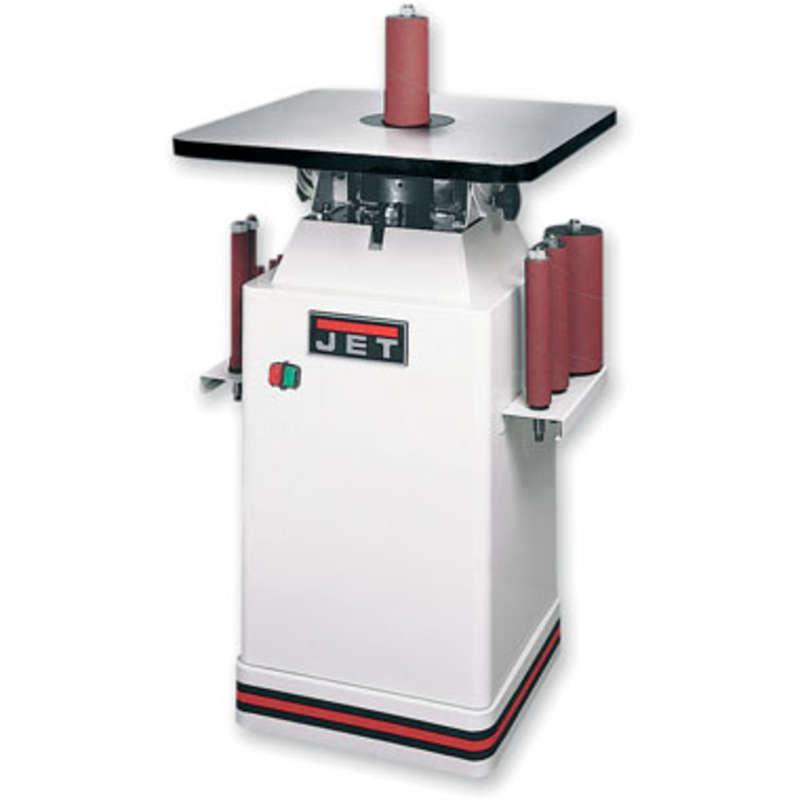

This is a very versatile machine with many uses in the trade workshop. The sander by virtue of its name oscillates up and down whilst rotating at 1,425rpm, ensuring that abrasive is not continually exposed at the same point reducing burning and creating a better quality of finish. The stroke is some 38mm long and is driven by a series of gears working in an oil filled gearbox. The large cast iron table gives adequate support to nearly all types of work and can be tilted to a full 45° if required. The machine is supplied with 10 metric bobbins all with sanding sleeves attached and the bobbins fit with a taper into the main drive shaft of the machine. The sleeves are spirally wound to ensure that they have no bump where the join is, more expensive than simple belts but they do leave an excellent finish on nearly all materials. The machine is floor standing and has no castors or wheels, if the machine needs to be moved on a regular basis we recommend the purchase of our mobile base unit 708118. A fine dust extractor is recommended. The machine is supplied complete with 3 table inserts, service tools, 100mm dust extraction outlet and the following sanding bobbins - 6 x 125mm, 9 x 150mm, 12 x 150mm, 19 x 230mm, 25 x 230mm, 38 x 230mm, 50 x 230mm, 75 x 230mm and 100 x 230mm.

Features

Oscillates up and down whilst rotating at 1,425rpm
37mm long stroke driven by a series of gears working in an oil filled gearbox
Large cast iron table can be tilted to a full 45°
Floor standing
Supplied with 3 table inserts, service tools, 100mm dust extraction outlet and the following metric sanding bobbins - 6mm x 125mm, 9mm x 150mm, 12mm x 150mm, 19mm x 230mm, 25mm x 230mm, 38mm x 230mm, 50mm x 230mm, 75mm x 230mm and 100mm x 230mm

Specification

Dust Extraction Outlet 100mm
Height of Bobbins 160mm & 230mm
Input Power S6 40% 1295W
Model JOVS-10
Nett Weight 135kg
Output Power S6 40% 1005W
Power Input 1,200W
Speed 1,425rpm
Table Height 900mm
Table Size 610 x 610mm

Warranty

12 months

NOTE: This machine may be subject to pallet or tail lift delivery charges. Please contact us for a quotation.
