The professionals choice for quickly and accurately hanging doors ! Note: Router not included

Features

The Hinge Jig is a portable template set designed for recessing hinges in wooden doors & frames.
It is easy to use with minimal setting-up time, completing the job both accurately & quickly.
Used on-site & in joinery shops to increase productivity with excellent results.
Four apertures for fire door requirements.
No need for marking out in the conventional way.
Quick & simple to set-up as the hinge is used as the pattern.
Clean & accurate recesses are achieved every time. Suitable for timber based doors & square butt hinges.
Use with a light duty router with 1/4 inch collet.
Long reach router cutter required 12mm diameter with 70mm overall length.
Angled position slots to prevent creep.

Specification

Hinge sizes possible
Length min. 2 5/8" (67mm)
Length max. 5" (127mm)
Width min. 3/8" (9.5mm)
Width max. 1 3/8" (35mm)
Door sizes possible
Height min. 6' 5" (1955mm)
Height max. 6' 10" (2100mm)
Thickness min. 5/8" (16mm)

Standard Equipment

4 x Apertures
2 x Bradawls with spacer
1 x 16mm guide bush
1 x T-Handle hex key
1 x 4mm spacing gauge
1 x Plastic storage tube

Warranty

12 months

To check compatability of your router model click here

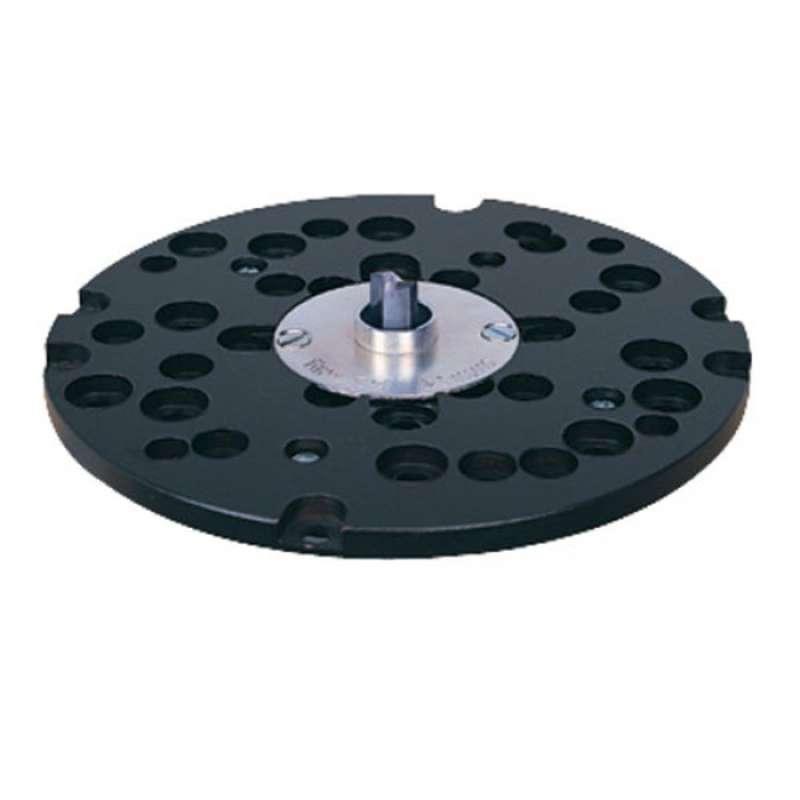

To purchase a universal subbase for your router model click here
