Features

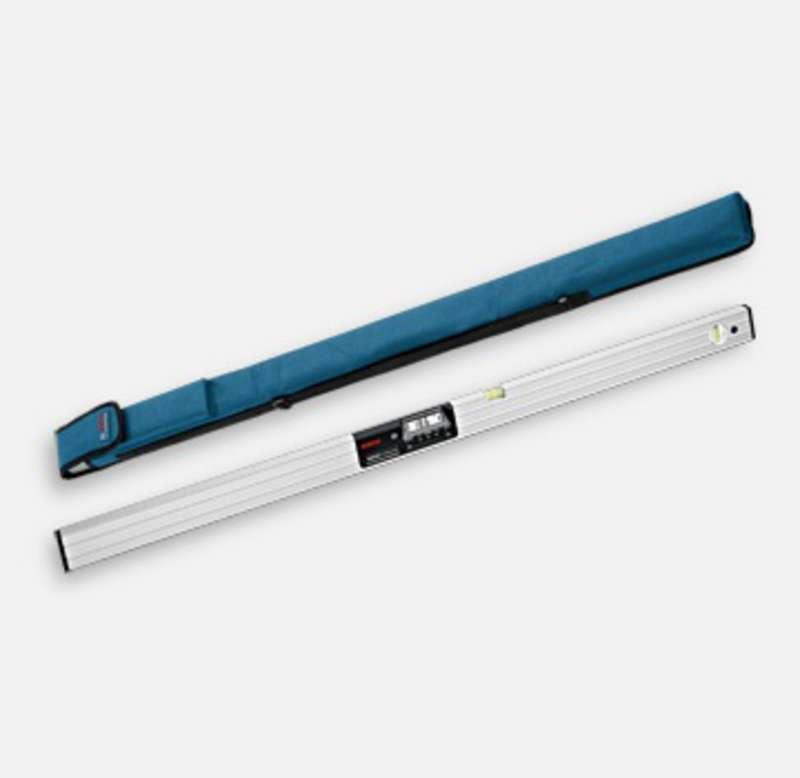

Sturdy inclinometer
Measures angles in ° and inclines in % or mm/m
Direction arrows display the deviation to the horizontals or verticals
Robust due to aluminium housing
Automatic rotation of the measured values on the display when working overhead
Acoustic signal at 0° and 90°
Hold function to hold measurement results at the push of a button
Copy function for copying inclines and transferring them to another position
Slanted, easy-to-read display
2 vials enable use as a spirit level
More carrying comfort and safety due to shoulder bag

Specification

Length 120 cm
Measurement range 0 - 360° (4 x 90°)
Electronics measurement accuracy 0°/90° ± 0.05°
Electronics measurement accuracy at 1°-89° ± 0.2°
Measurement accuracy, vials ± 0.057° = ± 1 mm/m
Power supply 1 x 9 V 6LR61
Operating duration approx. 200 H
Automatic deactivation facility, approx. 5 min
Weight approx. 1,3 kg
Width 25 mm
Height 60 mm

Standard Equipment

Protective bag (ET no. 1 609 203 R96)
1 x 9 V battery
