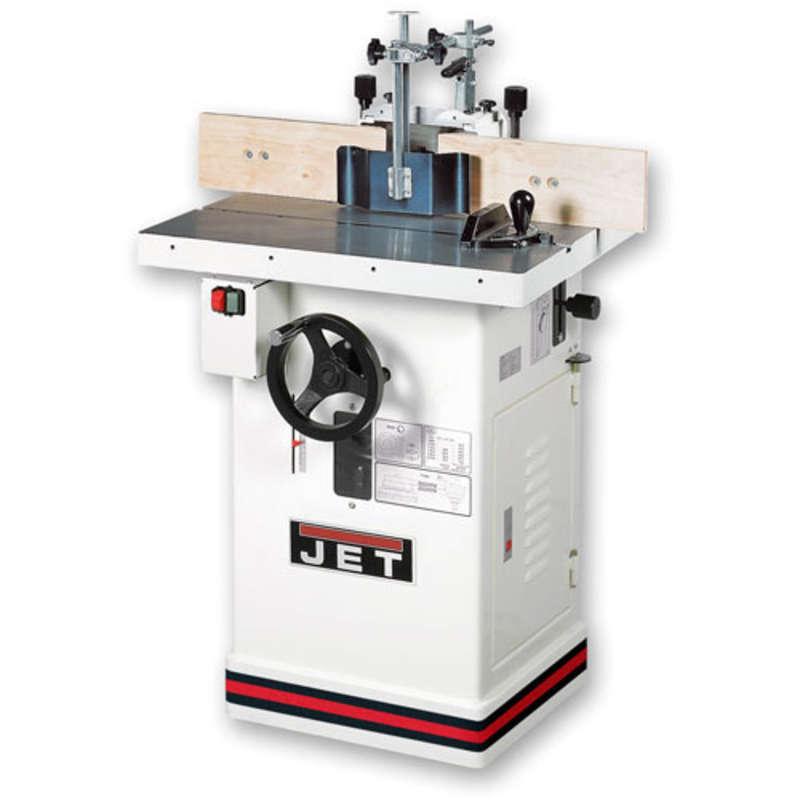

The JWS-34 LX is really a combination of two machines, spindle moulder and router-moulder. It accepts 30mm bore tooling and in addition there are two collets, 8mm and 1/2", supplied with the machine so that, when used on its highest speed, it can utilise router cutters with a diameter of 35mm or greater (smaller cutters simply would not have a high enough peripheral speed). The machine has one fully adjustable fence, micro adjustment on the outfeed fence and a 100mm dust extraction outlet at the rear. Height adjustment of the spindle is made with a generous-sized handle on the front of the machine and tooling changes can be speeded up with the aid of the spindle lock. For curved work the moulder is supplied with a ring fence with its own integral 100mm dust outlet. On the bed of the table is a T slotted groove in which the mitre guide slides and there is an additional tenoning guide (stock number 100415) available for end grain work. For long lengths of material and for added safety we thoroughly recommend the addition of the power feed unit (510365) detailed later in this section. This is easily attached using the very clever quick fit base (800430) that clamps on to the corner of the table casting. The mounting holes for the power feed are tapped into the base, thereby removing the need to drill holes in the table. A 20A supply is recommended.The optional sanding set (100391) is supplied with 1 off each abrasive to suit. For long lengths of material and for added safety we thoroughly recommend the addition of the power feed unit (340195).

Features

Combined spindle moulder and router-moulder
Four speed options 1,700, 3,500, 6,000 & 8,000rpm
Accepts 30mm bore tooling
Supplied with two collets - 8mm and 1/2"
Full CE guarding
One fully adjustable fence
Micro adjustment on outfeed fence
100mm rear dust extraction outlet
Front handle for spindle height adjustment
Ring fence
Tee slotted groove on bed
Optional tenoning guide and sanding spindles available

Specification

Dust Extraction Outlet 100mm
Input Power S6 40% 2.5kW/240V 4.2kW/415V
Max Spindle Projection Above Table 120mm
Max Tooling Diameter 180mm
Max Tooling Diameter Above Table 180mm
Max Tooling Diameter Below Table 160mm
Nett Weight 145kg
Output Power S6 40% 2kW/240V 3.4kW/415V
Overall L x W x H 950 x 750 x 1,170mm
Power Input 2,6kW(240V) - 4.2kW(415V)
Spindle Diameter 30mm
Spindle Height 120mm
Spindle Speed 1,700, 3,500, 6,000 & 8,000rpm
Spindle Travel 80mm
Table Height 830mm
Table Size 540 x 635mm

Warranty

12 months

This machine is on display in our Cardiff showroom. Should you wish to make further enquiries about purchasing or arrange for an in-store demonstration please feel free to contact us.

NOTE: This machine may be subject to pallet or tail lift delivery charges. Please contact us for a quotation.
