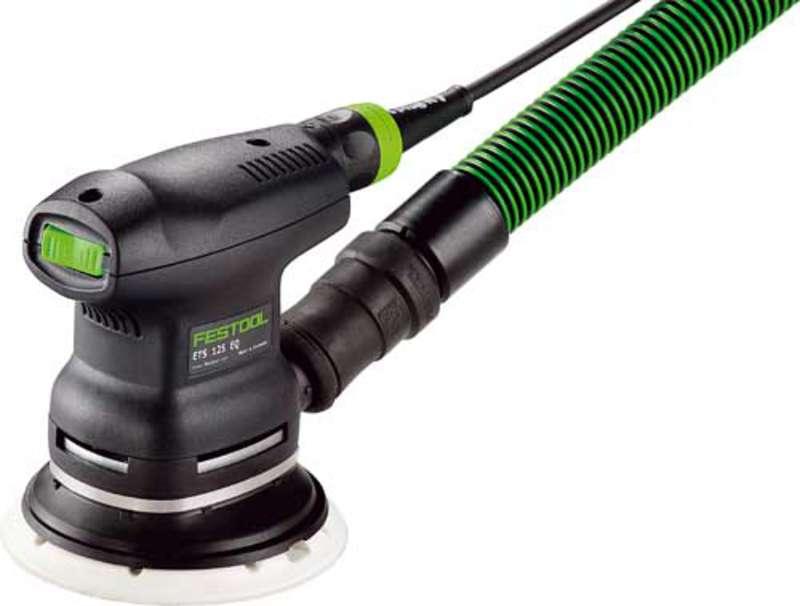

Features

Sanding pad brake for safe, faultless work with no reworking costs
2 mm sanding stroke for outstanding surface quality
Small, lightweight and extremely handy for non-tiring work

Main applications

One-handed sanding on shaped and curved parts, e.g. wooden and plastic parts
Ideal for vertical surfaces or work overhead
Light sanding of joins after repair work
Finishing or preliminary sanding of small surfaces

Technical data

Power consumption 200 W
Eccentric motion speed 6000-14000 min-1
Sanding stroke 2 mm
Interchangeable sanding pad Ø 125 mm
Connection Ø d/e 27 mm
Weight 1,1 kg

Includes

Sanding pad StickFix Ø 125 mm (soft-HT)
StickFix sanding disc Brilliant 2, P120
Filter cartridge

Warranty

Features

Maximum flexibility thanks to flat housing for minimum wall distance
* Even more precise thanks to angle setting with snap-in points and indentation (-1° and/or 47°)
* Guide wedge for safer work and simple positioning in existing joint
* Good view of scribe line and saw blade thanks to the new flush and moveable viewing window
* Improved dust extraction thanks to the new shape of the extraction duct
* Simpler operation with the double cutting depth scale (with/without guide rail)
* More benefits: splinterguard, FastFix, play adjustment without the need for tools, quick brake, etc.
Main applications
* Precise circular in materials up to 55 mm thick
* Cutting interior doors to length using guide rail and circular saw
* Manufacturing expansion joints in parquet flooring and false joints
* Cutting chipboard to size
* Cutting and processing plasterboard

Specification

Power consumption 1200 W
Idle engine speed 2000-5200 min-1
Saw blade diameter 160 mm
Inclination -1 / +47 °
Cutting depth 0-55 mm
Cutting depth at 45 degrees 0-43 mm
Cutting depth at 45°/90° 0-43/0-55 mm
Connection Ø d/e 27/36 mm
Weight 4,5 kg

Standard Equipment

fine tooth saw blade HW W48
guide rail FS 1400/2
splinterguard
Flag window; vision panel
operation tool
in a SYSTAINER SYS 4 T-LOC

Warranty

Click above logo to register your 3 year guarantee online
