Features

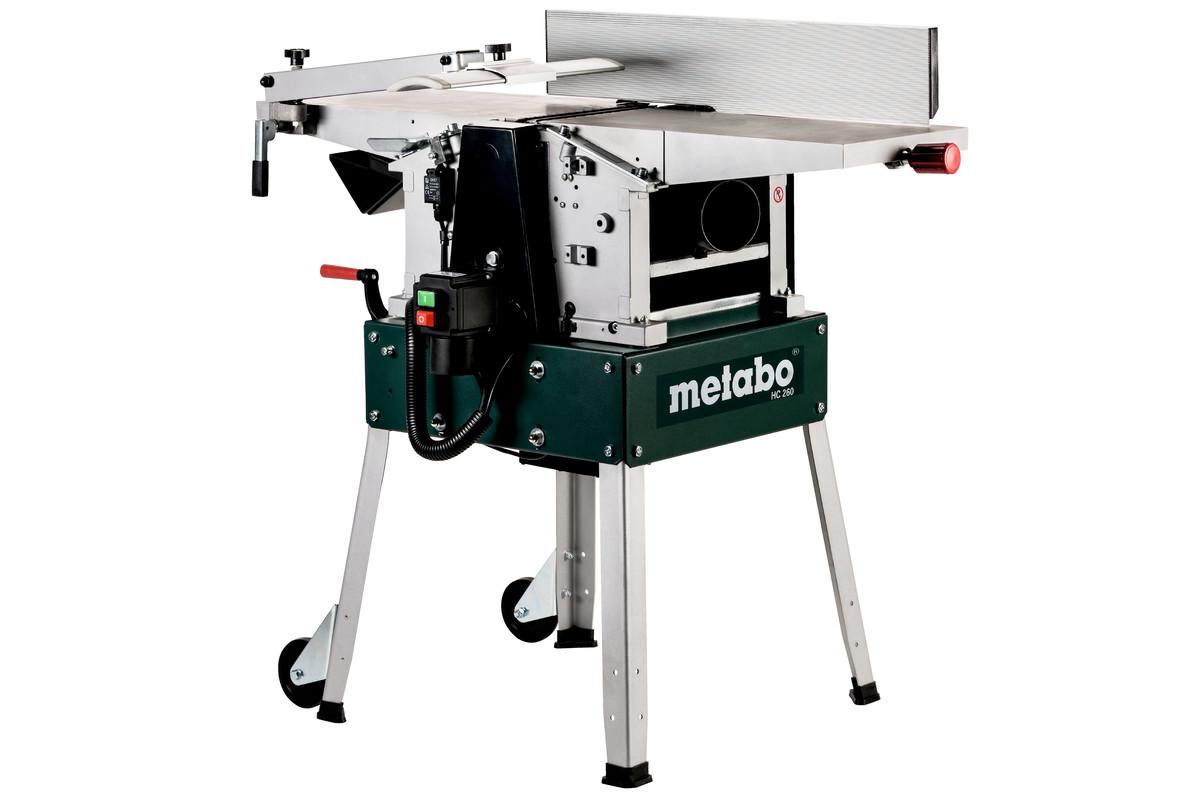

For precise angular trimming of raw wood
Sturdy feedgear mechanism
Thickness table made of solid, non-abrasive grey cast iron
Convenient height adjustment with crank handle
Dressing plate made of cast aluminium
Planer blade with double edge
Trimming fence, swivelling 90°-45°
"Sawdust-tested" in compliance with TRGS 553 by FPH
Extensive range of accessories
For single phase alternating current

Specification

Dimensions L x W x H 1.110 x 620 x 960 mm
Dressing plates L x W 1.040 x 260 mm
Chip removal
- Planing 0 - 3 mm
- Thickness planing 0 - 3 mm
Material
- Dressing plates Cast aluminium
- Thickness table Grey cast iron
Thickness table L x W 400 x 260 mm
Passage height/width 160 mm/260 mm
Feed rate 5 m/min
Diameter of blade shaft 63 mm
Number of blades 2
Revolutions of blade shaft 6.500 /min
Rated input power 2,2 kW
Output power 1,6 kW
Weight 71 kg

Standard Equipment

integrated disposable reversible planer blades, short, swivelling jointing fence, chip ejection hood, Push stick, Extraction nozzle

Warranty

click above logo for more details or to register you purchase online

This machine is on display in our Cardiff showroom. Should you wish to make further enquiries about purchasing or arrange for an in-store demonstration please feel free to contact us.

NOTE: This machine may be subject to pallet or tail lift delivery charges. Please contact us for a quotation.
