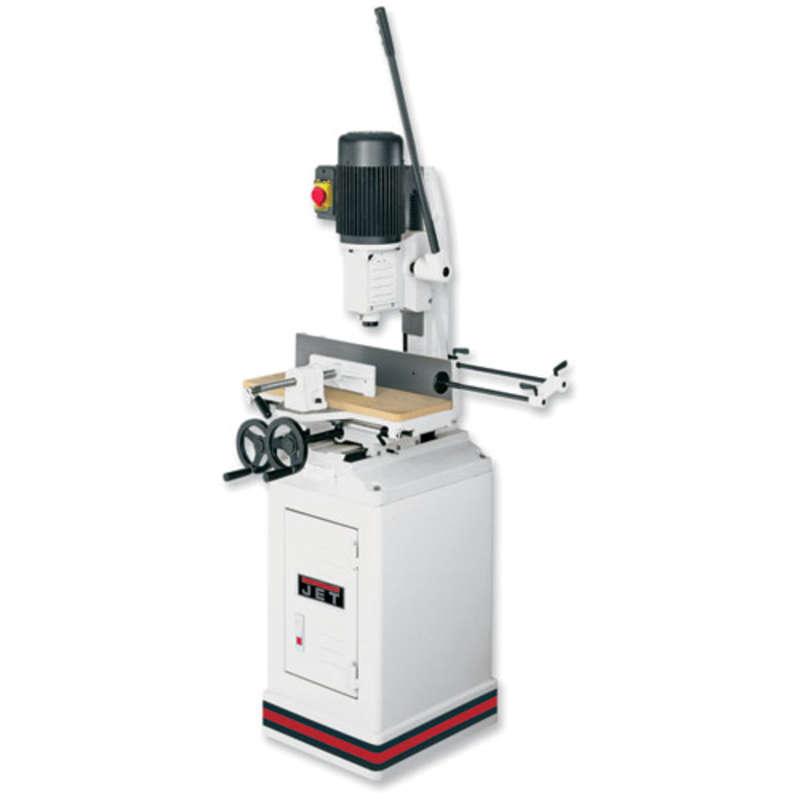

A floor standing morticer with a 25mm capacity. The unique screw and fast action nut allows the material clamp to be set across its length in seconds. With fully adjustable slideways the morticer has travel in both directions with lock on the fore and aft setting. The main operating handle has a clever ratchet setting which allows it to be quickly set in the correct position for optimum leverage. The depth stop is simple and very effective to use. Along the back of the main table is a mortice length setting device which allows the mortice length to be pre-set for reduced marking out. The cabinet base is fabricated from heavy gauge sheet steel and incorporates a shelf in the base for storage of chisels, bits and service tools. Bushes are provided for 3/4", 13/16" and 1.13/16" shank chisels. Supplied with cabinet base, chisel bushings and service tools.

Features

25mm capacity
Accurate and quick-to-change material clamp
Fully adjustable slideways
Ratchet setting on main operating handle
Motor and switch gear are virtually silent in operation
Simple and effective depth stop

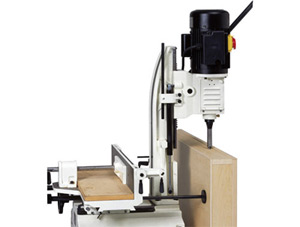

Head rotates 180° for door lock morticing
Cabinet base fabricated from heavy gauge sheet steel
Supplied with bushes for 3/4", 13/16" and 1.13/16" shank chisels and cabinet base

Specification

Capacity 140 x 190mm
Centre of Chisel to Back Fence 100mm
Chisel Stroke 140mm
Input Power S6 40% 1295W
Max Chisel Size Hardwood 19mm
Max Chisel Size Softwood 25mm
Max Height of Timber with 12.7mm Chisel and Bit 190mm
Model 719-A
Nett Weight 110kg
Output Power S6 40% 1005W
Overall L x W x H 700 x 580 x 950mm (1,550mm inc stand)
Power Input 1,300W

Warranty

12 months
