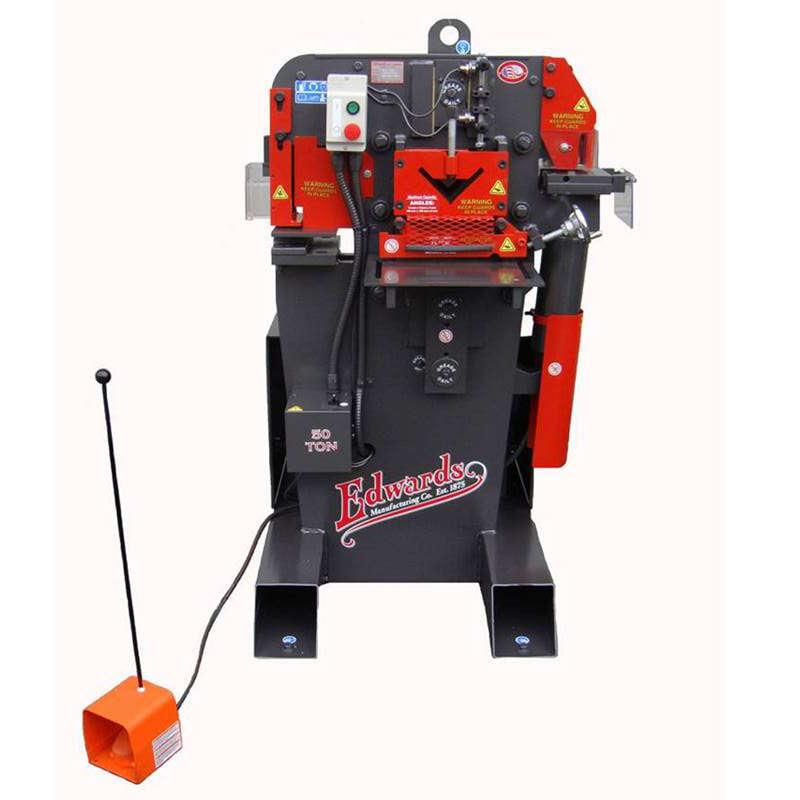

Edwards Ironworkers operate by applying hydraulic force to a moving center that moves within a frame in a simple, vertical path. It exerts force through shear blades, punch and die, notcher, brake dies, or bump-die tooling upon mild steel. Vertical travel of the moving center allows the operator to perform multiple operations on an Edwards Ironworker without removing any adjacent tooling.

Features

4 Available Stations
Punching Station to accept optional tooling
Open Station for optional Coper/Notcher
Compact: Perfect for small shops!
Vertical punching action(no arc)
Solid frame throughout the Ironworker.
Frames 25% thicker than other manufactures
Low rake shear blades for "Guillotine Quality" Shear.
Reversible shearing blades
No extra charge for single phase

Specification

Punching 26 Ø - 16mm plate.
Flat bar shearing 250mm x 13mm
Angle iron upto 100mm
Notching 50mm x 75mm x 8mm
Rated Capacity 50 ton
Throat Depth 7"
Open Height 8-1/8"
Shut Height 7"
Stroke 1-1/8"
Cycle Time 2 seconds
Electric Motor Options 5 HP, 3 Phase, 440/480 v
5 HP, 1 Phase, 208/240 v

Warranty

12 months

Should you wish to make further enquiries about purchasing or arrange for an in-store demonstration please feel free to contact us.
