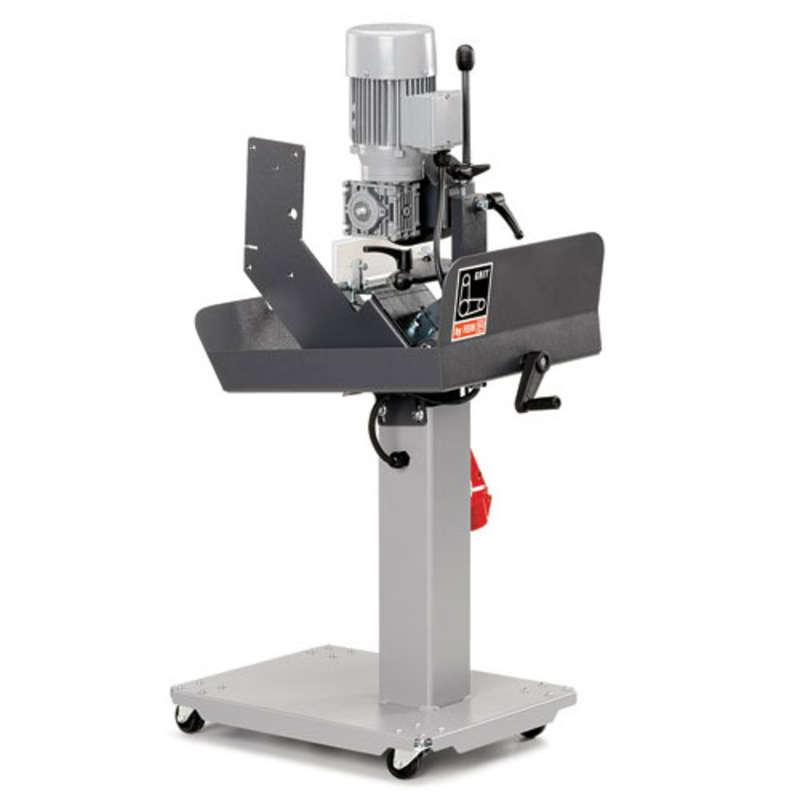

The GXC centreless grinding module allows for perfect surfaces in the simplest manner. The conversion to a Centreless cylindrical grinding machine is done in just a few steps. Efficiency and flexibility are apparent in the design and construction.
Perfect surface quality and high process speeds on pipes and shafts are no contradiction for the GXC centreless grinding module. Even commercially available fleece belts can be used in connection with the GX 75 2H basic unit. The advance speed can be infinitely variably adjusted for the material, up to 2 metres per minute.
Various guide rails are included in the scope of delivery that are tuned to the surface quality of the workpiece. The guide rail made of brass is made for rough surfaces such as corrosion, scale, etc., or for dry grinding. The nylon rail is the perfect choice for surface polishing and sensitive material.

Features

For grinding of pipes and shafts from Ø 10-100 mm
High process speed at highest surface quality
Also suitable for wet-grinding in connection with the cooling lubricant module GXW
Easy handling by 4 easy-to-steer transport casters

Specification

Pipes Ø 10-100 mm
Belt size 75 × 2000 mm
Weight 48 kg

Standard Equipment

1 guide rail, nylon, 1 guide rail, brass, 1 connecting cable with CEE plug 16 A

Warranty

12 months
