JET 22-44 Plus 560mm Drum Sander
|
£982.92 (exc VAT) Each Stock Code: JET310007 Availability: Up to 2 or 3 working days |
Details

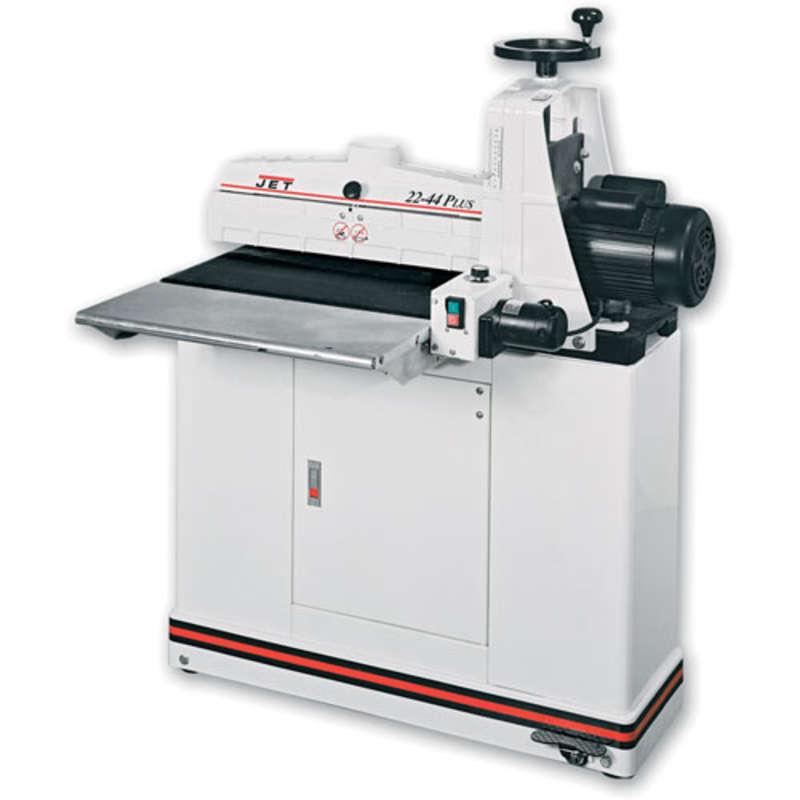

shown with optional cabinet base
This is the largest of the Jet open-ended drum sanders and has the capacity to sand boards up to 1,120mm wide (in two passes) by 100mm thick. The drum is balanced to reduce vibration to a minimum and has adjustments so that the drum and table can be set perfectly parallel to each other. The variable speed feed conveyor motor drives the timber through the sander at speeds from 3m/min down to virtual stop so that an excellent finish can be obtained even on the most difficult pieces of grained timber. A major feature is the 'Sand Smart' technology, which gives an automatic reduction of the feed rate to avoid excessive material removal on uneven timbers. Changing the abrasive loading is quick and easy using the self tensioning clip device incorporated into the roller. A pair of feed tables is available as an optional accessory for ease of handling longer lengths of timber.There are three mounting options: 1. Bench mounting as supplied, 2. A closed cabinet stand, as pictured, with integral wheels (609005) and 3. An open frame stand (609004).Supplied with 80 grit loading, 100 grit conveyor belt, cleaning stick, one box of abrasive loadings and service tools.
Capacity to sand boards up to 1,120mm wide in two passes by 100mm thick
Specially balanced drum with adjustments for drum and table setting
Variable speed feed conveyor (3m/min)
Self tensioning clip device incorporated into roller
Supplied with 80 grit loading, 100 grit conveyor belt, cleaning stick, one box of abrasive loadings and service tools
Supplied for bench mounting
Optional pair of feed tables
Optional mounting options include closed cabinet stand with integral wheels and frame built stand
Adjustment 0.1mm
Dust Extraction Outlet 100mm
Feed Speed 0-3m/min
Input Power S6 40% 2.2kW
Nett Weight 90kg
Output Power S6 40% 1.75kW
Overall L x W x H 1,050 x 680 x 1,300mm
Power Input 2.2kW
Sanding Drum Diameter 127mm
Sanding Thickness Min/Max 0.8/100mm
Sanding Width Double Pass 1,120mm
Sanding Width Single Pass 560mm
Speed
12 months
This machine is on display in our Cardiff showroom. Should you wish to make further enquiries about purchasing or arrange for an in-store demonstration please feel free to contact us.
This is the largest of the Jet open-ended drum sanders and has the capacity to sand boards up to 1,120mm wide (in two passes) by 100mm thick. The drum is balanced to reduce vibration to a minimum and has adjustments so that the drum and table can be set perfectly parallel to each other. The variable speed feed conveyor motor drives the timber through the sander at speeds from 3m/min down to virtual stop so that an excellent finish can be obtained even on the most difficult pieces of grained timber. A major feature is the 'Sand Smart' technology, which gives an automatic reduction of the feed rate to avoid excessive material removal on uneven timbers. Changing the abrasive loading is quick and easy using the self tensioning clip device incorporated into the roller. A pair of feed tables is available as an optional accessory for ease of handling longer lengths of timber.There are three mounting options: 1. Bench mounting as supplied, 2. A closed cabinet stand, as pictured, with integral wheels (609005) and 3. An open frame stand (609004).Supplied with 80 grit loading, 100 grit conveyor belt, cleaning stick, one box of abrasive loadings and service tools.
Features
Capacity to sand boards up to 1,120mm wide in two passes by 100mm thick
Specially balanced drum with adjustments for drum and table setting
Variable speed feed conveyor (3m/min)
Self tensioning clip device incorporated into roller
Supplied with 80 grit loading, 100 grit conveyor belt, cleaning stick, one box of abrasive loadings and service tools
Supplied for bench mounting
Optional pair of feed tables
Optional mounting options include closed cabinet stand with integral wheels and frame built stand
Specification
Adjustment 0.1mm
Dust Extraction Outlet 100mm
Feed Speed 0-3m/min
Input Power S6 40% 2.2kW
Nett Weight 90kg
Output Power S6 40% 1.75kW
Overall L x W x H 1,050 x 680 x 1,300mm
Power Input 2.2kW
Sanding Drum Diameter 127mm
Sanding Thickness Min/Max 0.8/100mm
Sanding Width Double Pass 1,120mm
Sanding Width Single Pass 560mm
Speed
Warranty
12 months
This machine is on display in our Cardiff showroom. Should you wish to make further enquiries about purchasing or arrange for an in-store demonstration please feel free to contact us.
NOTE: This machine may be subject to pallet or tail lift delivery charges. Please contact us for a quotation.
|
£982.92 (exc VAT) Each Stocks Code: JET310007 Availability: Up to 2 or 3 working days |
