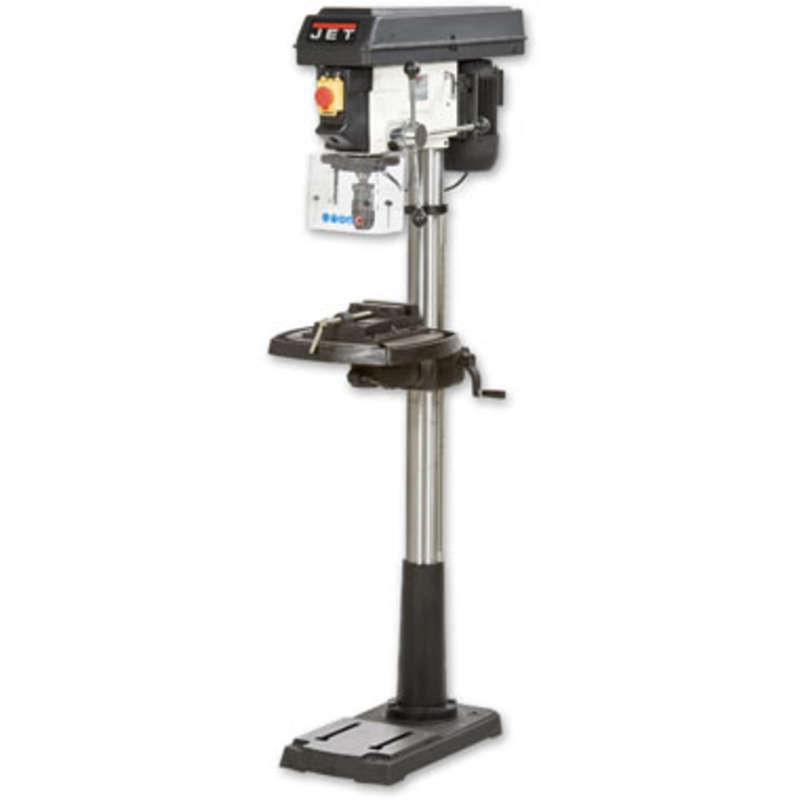

The Swiss reputation for precision, once again comes to the fore in the Jet range of drill presses. The Morse taper inside the quill has a guaranteed concentricity of less than 0.03 mm. The spindles are supported by precision ball bearings. As would be expected with drills of this quality, a 16mm keyless precision chuck is part of the standard equipment. The powerful motor is rated for continuous operation. A precision drill depth stop is fitted as standard to all the models. N.B. It is advisable to bolt the base of the drill to a solid surface before operation.

Features

Guaranteed concentricity
Precision ball bearings throughout
Heavy-Duty 16mm keyless chuck
Input 1000W motor
Rated for continuous operation
Precision depth stop

Specification

Chuck Cap/Type 16mm keyless
Chuck Travel 85mm
Diameter of Column 80mm
Model JDP-17
Nett Weight 83kg
Overall L x W x H 680 x 430 x 1625mm
Power Input 1,000W
Speed Range (16) 160-3,330rpm
Spindle Taper 3MT
Table Size 365 x 365mm
Table Tilt 45°-0-45°

Warranty

12 months

NOTE: This machine may be subject to pallet or tail lift delivery charges. Please contact us for a quotation.
