The next generation in cordless nailing technology

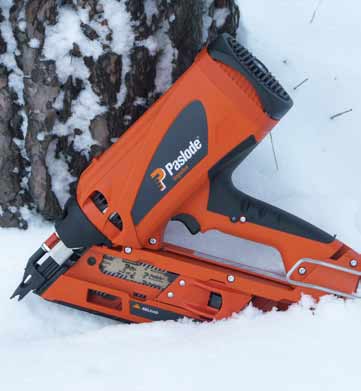

The NEW Paslode IM90i is the first cordless nailer powered by an intelligent electronic fuel injection system offering unrivalled cold weather performance. Tested in temperatures as low as -15ºC, the IM90i delivers consistent nailing time after time.

Applications

Timber frame erection, Floor boarding, Roof battening, Decking, Flat roofing, Chipboard, Shuttering, Cladding, Joists, Noggins, Soffits, Refurbishment, Panelling, Fencing, Packaging

Features

Temperature performance - intelligent fuel injection system delivers unrivalled cold weather performance with a working threshold of -15ºC to +49ºC
More power - new improved nailing system produces 105 joules of power, providing users with the ability to drive 90mm Ring Shank Nails
RounDrive® Nails - a unique off-centre design and are the only full-head 34º nails available in paper strip collation
Removable magazine - makes light work of clearing jams and debris from the tool
Long magazine - saves time and effort during high volume nailing by using the double length magazine accessory, with 2 strip capacity
Fuel cell loading - the patented locking system means the fuel cell self-locates into the lock position, making loading a simple operation
On / Off battery - new easy click on / off settings enables the tool to be left in safe mode, without needing to remove the battery
Depth Adjuster - the tool-free depth adjuster with it's unique locking system means consistent nail embedment every time
Indicator lights - LED lights indicate; battery charge - green for positive charge, red for low charge; tool cleaning - flashes orange after 30,000 shots to indicate it is time to clean the tool.

Specification

Soft grip handle - Rubber grip increases comfort over long working periods by improving tool handling
Weight 3.7kg
Dimensions 380 x 324 x 113mm
Nail range 50mm to 90mm
Cycle rate 2-3 nails per second
Maximum cycle rate 1,000 per hour 4,000 per day
Magazine capacity 37 (Standard); 74 (Long)
Fuel cell life Approx 1,250 shots at -5ºC
Battery Approx 4,000 shots at -5ºC
Charger Maximum charge time of 2 hours

Standard Equipment

Paslode IM90i Nailer, high impact lightweight carry case 2 x batteries, battery charger, intensive cleaning solution, Paslode lubricating oil, safety glasses to EN166:F, allen key,

Warranty

12 months
