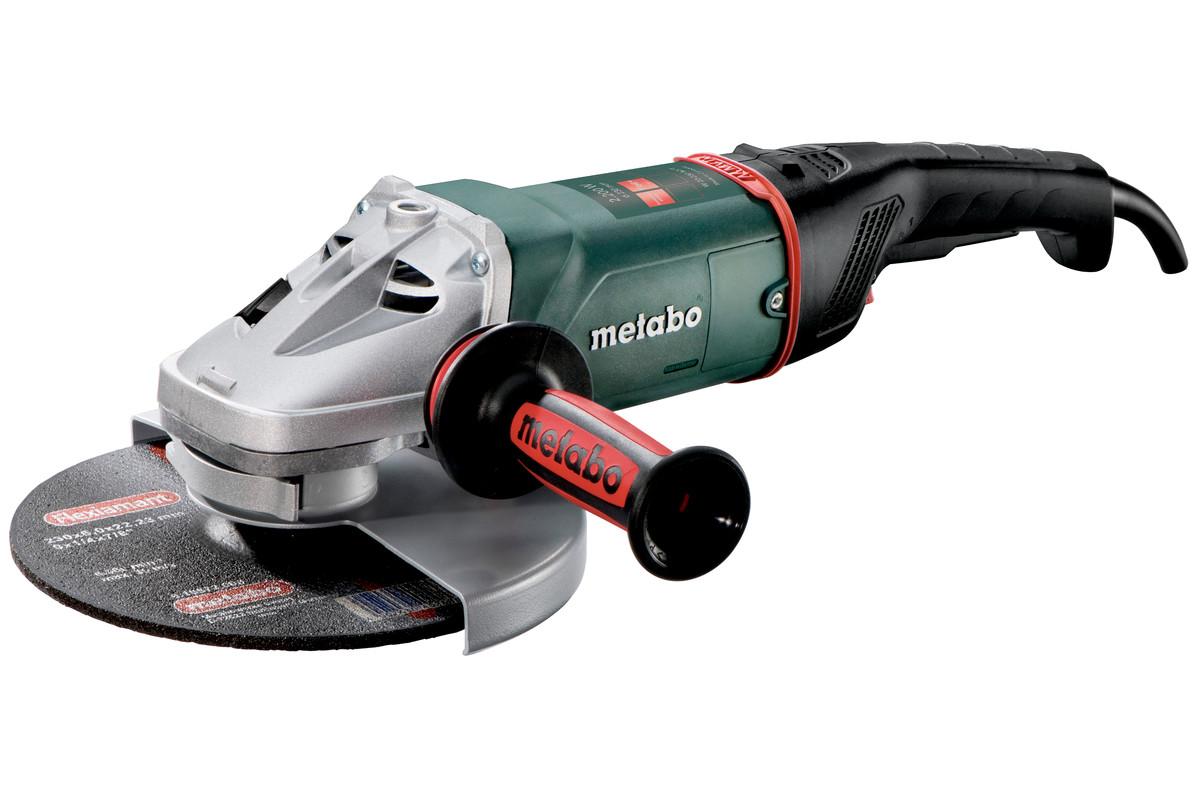

The W22-230 is a powerful 230 mm 9" industrial quality angle grinder with a rotating back handle. This gives the user great working power in a flexible form, ideal for where the machine is used for both grinding and cutting applications.

Metabo is well known for its industrial quality angle grinders. These German built machines distinguish themselves from the crowd through the use of high quality, high performance components. Made to work day-in, day-out, in the most demanding of working environments this grinder will pay for itself in high productivity and low downtime - guaranteed!

Metabo Marathon Motor
Epoxy resin powder coatings on the coil windings, armature protection grid, sealed bearings and wiring terminals and encapsulated carbon brush modules all help to make the motor completely impervious to harmful dust/debris, thus increasing efficiency and service life.

Die cast aluminium gear housing
Increases the service life of the machine. The machine is more robust and dissipates heat faster.

Metabo Safety Clutch
The mechanical clutch slips when a disc jams protecting machine and user from sudden machine kick back.

Features

Robust Marathon motor for up to 5 times service life
Metabo winding protection grid
High efficiency and increased torque through optimum heat dissipation
Metabo safety switch: safety lock against unintentional start
Dead-man function: Immediate shutdown of the machine when the switch is released
Twist-proof protective cover, can be adjusted within seconds without tools
Metabo VibraTech (MVT): Reduction in the health risks caused by hand-arm vibration thanks to the integrated shock systems
Additional handle adjustable according to application: left, right or upwards
Die cast aluminium gear housing
Main handle rotatable without tools
Auto-stop carbon brushes

Specification

Grinding wheel Ø 230 mm
Torque 14 Nm
Idle revolution 6.600 /min
Rated input power 2.200 W
Output power 1.500 W
Revolutions at rated load 4.600 /min
Spindle thread M 14
Weight (without power cable) 5,8 kg

Standard Equipment

Protective cover
Inner support flange
Adjusting nut
metabo VibraTech (MVT) handle
Flat-pin spanner
